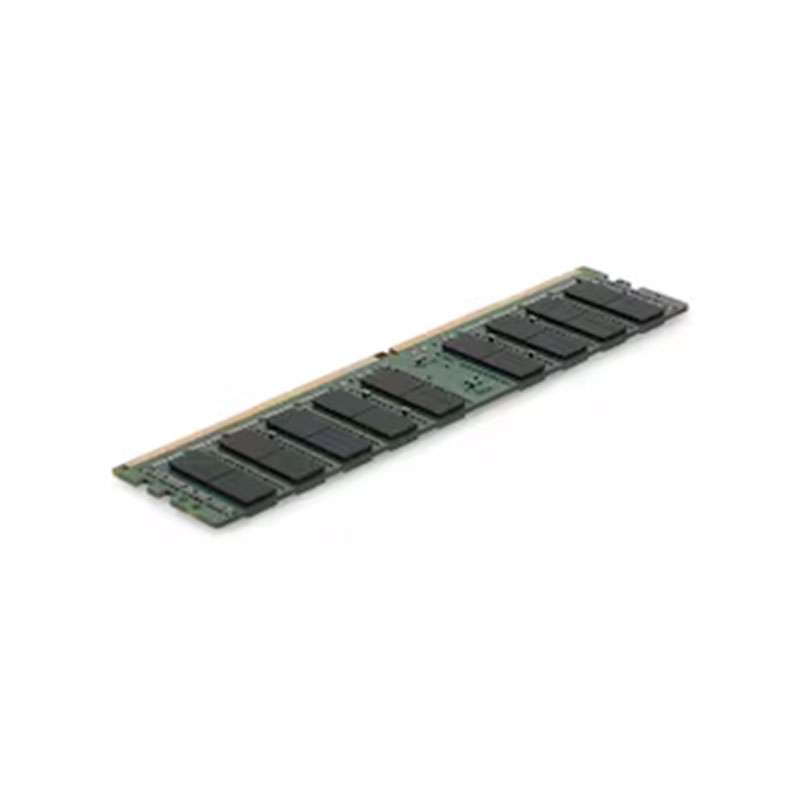

A7945725-AM AddOn 32GB DDR4-2133MHz DIMM Memory Module
A7945725-AM Overview
The AddOn A7945725-AM is a high-capacity 32GB DDR4-2133MHz Load Reduced ECC memory module built for enterprise servers that need massive memory density without sacrificing stability. Operating at 2133MHz with CL15 timings, quad-rank architecture, and registered buffering, this 288-pin LRDIMM runs efficiently at 1.2V and is specifically engineered for data centers and memory-intensive server environments.
Load Reduced technology significantly lowers the electrical load on the memory bus, allowing servers to populate more DIMMs per channel and achieve much higher total memory capacity compared to standard RDIMMs.
$210.00
Shipping calculated at checkout.
A7945725-AM Technical Specifications
AddOn 32GB PC4-17000 DDR4-2133MHz ECC Registered CL15 288-Pin Load Reduced DIMM Quad Rank 1.2V Memory Module
| Manufacturer | AddOn Computer |
|---|---|
| Part Number | A7945725-AM |
| Capacity | 32 GB |
| Memory Type | DDR4 SDRAM |
| Module Type | 288-Pin LRDIMM (Load Reduced DIMM) |
| Bus Speed | 2133 MHz (PC4-17000) |
| Data Transfer Rate | 17.0 GB/s |
| CAS Latency | CL15 |
| Error Correction | ECC (Error Correcting Code) |
| Signal Processing | Load Reduced (LRDIMM) |
| Rank Architecture | Quad Rank (4Rx4) |
| Chip Organization | 2G x 4 |
| Operating Voltage | 1.2V |
| Form Factor | Standard DIMM Height |
| Contact Pins | 288-Pin Gold-Plated |
| Standard | JEDEC compliant |
