Refurbished Refurbished 783359-S01 Technical Specifications

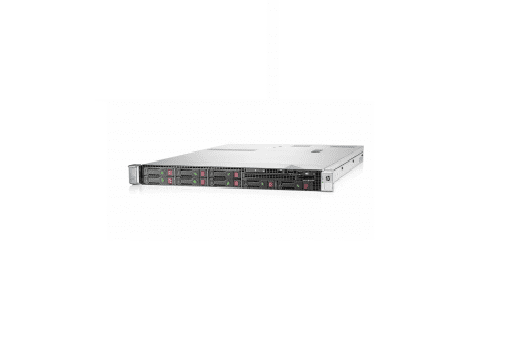

HP Proliant Dl160 G9 S-Buy Base Model Xeon 6-Core E5-2620-V3 / 2.4GHz, 16GB Ddr4 Sdram, 2x Gigabit Ethernet, 550w Ps, 1u Rack Server.
General Information
| Manufacturer |
Hewlett Packard |
| Manufacturer Part Number |
783359-S01-RF |
| Product Name |
Proliant Dl160 Gen9 1u Rack Mount S-Buy Base Model |
Processor & Chipset
| Processor Type |
Intel Xeon E5-2620V3 / 2.4 Ghz |
| Number Of Cores |
Hexa-Core (6 Core) |
| 64-Bit Computing |
Yes |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Upgradability |
Upgradable |
| Chipset Type |
Intel C610 |
Cache Memory
| Cache Memory Type |
L3 Cache |
| Installed Size |
15 MB |
| Cache Per Processor |
15 MB |
Memory
| Installed Size |
16 Gb |
| Maximum Size |
512 Gb |
| Technology |
Ddr4 Sdram |
| Memory Speed |
2133 Mhz |
| Memory Specification Compliance |
Pc4-17000 |
| Form Factor |
Dimm 288-Pin |
| Memory Slots |
16 x DDR4 RAM Slots |
| Features |
Registered, Hp Smartmemory |
| Configuration Features |
2 X 8 Gb |
| Ram Supported |
Pc4-17000 – 256 Gb – Registered, Pc4-17000 – 512 Gb – Load-Reduced |
Storage & Storage Controller
| Hard Drive |
None |
| Storage Controller Type |
1 X Raid – Integrated |
| Controller Interface Type |
Sata 6gb/S |
| Storage Controller Name |
Hp Dynamic Smart Array B140i |
| Channel Qty |
8 |
| Raid Level |
RAID 0, RAID 1, RAID 5 |
Display & Graphics Controllers
| Graphics Controller Type |
Integrated |
| Graphics Processor |
Matrox G200eh2 |
Network & Communication
| Networking |
Network Adapter – Integrated |
| Interface (Bus) Type |
Pci Express 2.0 X2 |
| Ethernet Ports |
2 X Gigabit Ethernet |
| Ethernet Controller(S) |
Hp Nc361i |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller |
Integrated Lights-Out 4 |
| Features |
Wake On Lan (Wol), Pxe Support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ |
Expansions & Connectivity
Expansion Bays Total (Free)
- 1 (Total) / 1 (Free) X Front Accessible – 5.25in Slim Line
- 8 (Total) / 8 (Free) X Hot Swap – 2.5in Sff
Expansion Slots Total (Free)
- 16 (Total) / 14 (Free) X Memory – Dimm 240-Pin
- 2 (Total) / 1 (Free) X Processor
1 (Total) / 1 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
- 1 (Total) / 1 (Free) X Pci Express 3.0 X8 – Low-Profile
- 1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports
- 1 X Display / Video – Vga
- 2 X Network – Ethernet 10base-T/100base-Tx/1000base-Tx – Rj-45
- 1 X Management – Hp Ilo – Rj-45
- 1 X Usb 2.0 ( 1 In Front )
- 3 X Usb 3.0 ( 2 Rear, 1 Internal )
Power Device
| Device Type |
Power Supply |
| Voltage Required |
Ac 120/230 V ( 50/60 Hz ) |
| Power Provided |
550 Watt |
Dimensions & Weight
| Width |
17.1 In |
| Depth |
23.9 In |
| Height |
1.7 In |
| Weight |
22 Lbs |
