7606S-RSP7C-10G-R Technical Specifications

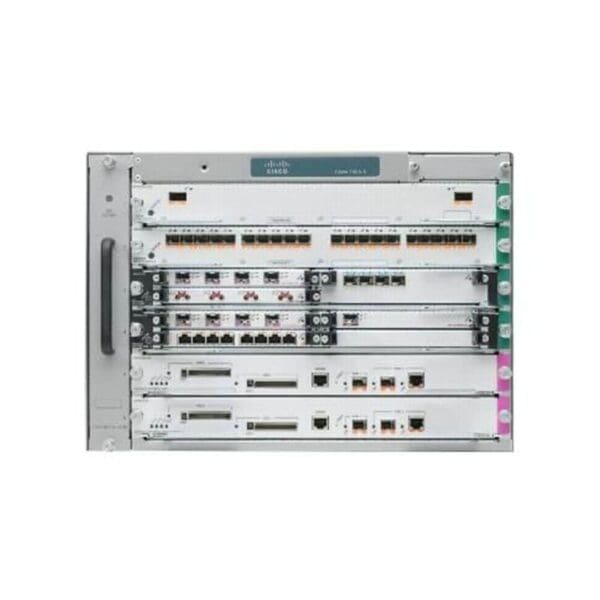

Cisco 7606S Chassis,6-slot,Red System,2RSP720-3C-10GE,2PS
| Manufacturer | Cisco |
|---|---|
| Manufacturer Part Number | 7606S-RSP7C-10G-R |
| Device Type | Router |
| Enclosure Type | Rack-mountable |
| Product Model | 7606S |
| Product Type | Router Chassis |
Router Bundle
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance IPv4 routing | 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps |
| Capacity IPv4 routes | 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000 ¦ ACL rules: 128000 |
| Network / Transport Protocol | TCP/IP, ICMP/IP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
| Ram 2 Gb | (installed) / 6 GB (max) |
| Flash Memory | 1 GB (installed) / 2 GB (max) |
Expansion / Connectivity
| Installed Modules Qty | (Max) 2 (installed) / 6 (max) |
|---|---|
| Power Device | Internal power supply – hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
