Refurbished 7604-RSP720CXL-P Technical Specifications

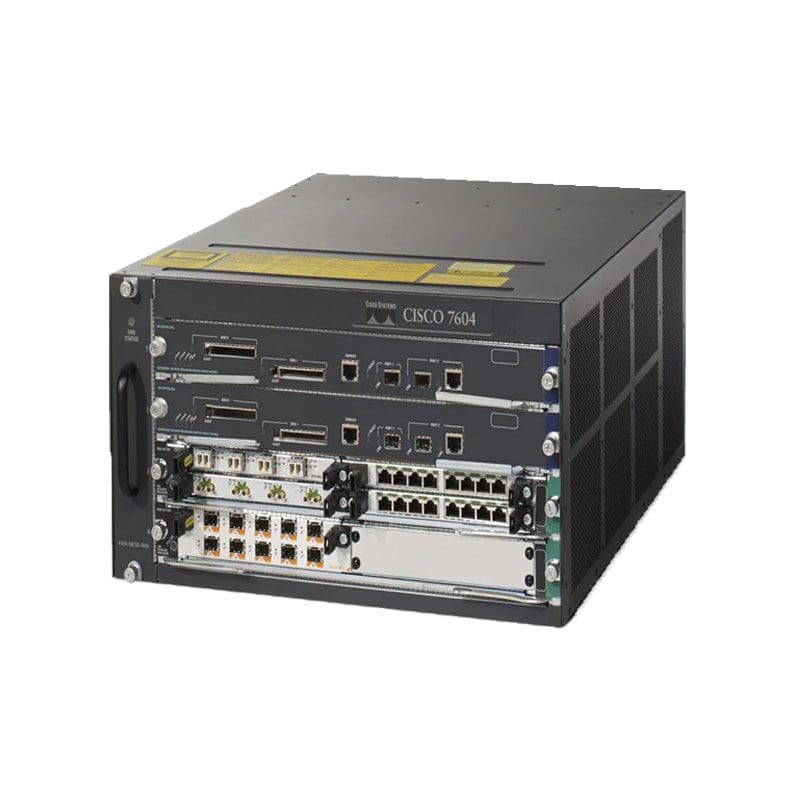

Cisco 7604 Chassis,4-slot,RSP720-3CXL,PS
| Device Type | Router – with Cisco 7604 Series Route Switch Processor 720 with PFC-3CXL |
|---|---|
| Enclosure Type | Desktop – modular – 5U |
| Product Type | Router Chassis |
Router Bundle
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance IPv4 routing | 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps |
| Capacity IPv4 routes | 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 256000 ¦ ACL rules: 256000 |
| Network / Transport Protocol | TCP/IP, ICMP/IP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM |
| Features | Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A |
| Processor | PowerPC 1.2 GHz |
| RAM | 3 GB (installed) / 6 GB (max) |
Expansion / Connectivity
| Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management | 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC) |
|---|---|
| Expansion Slots | 4 (total) / 3 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card – type II |
| Installed Modules Qty (Max) | 1 (installed) / 4 (max) |
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | 1 (installed) / 2 (max) |
Dimensions & Weight
| Width | 17.5 in |
|---|---|
| Depth | 21.7 in |
| Height | 8.7 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
