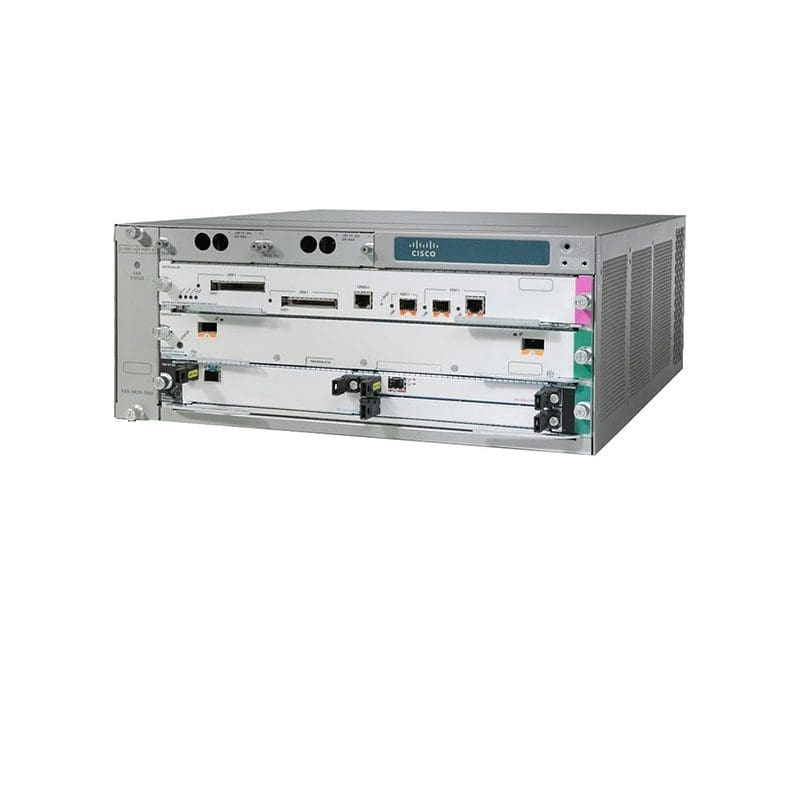

Refurbished 7603S-RSP7C-10G-P Cisco 7603 Router
Refurbished 7603S-RSP7C-10G-P Overview
The Cisco 7603-S Router is a compact, 3-slot, high-performance router designed for deployment at the access or aggregation edge, where a combination of performance and multiple services options is necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7603-S also enables mobile operators to preaggregate time-division (TDM) and ATM circuits over a common pseudowire layer, tremendously reducing operating expenses (OpEx). The Cisco 7606-S also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.
$6,840.00
Refurbished 7603S-RSP7C-10G-P Technical Specifications
Cisco 7603S Chassis,3-slot,RSP720-3C-10GE,PS
General
| Device Type | Router – with Cisco 7603 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE) |
|---|---|
| Enclosure Type | Rack-mountable – modular – 4U |
| Model | 7603S |
| Product Type | Router Chassis |
Router Bundle
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance Switching capacity | 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps |
| Capacity ACL rules | 128000 ¦ IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000 |
| Network / Transport Protocol | TCP/IP, ICMP/IP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
| Features | Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, VPN support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, DiffServ support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, Virtual Route Forwarding-Lite (VRF-Lite) |
| Compliant Standards | IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, EN300-386 |
| RAM | 2 GB (installed) / 6 GB (max) |
| Flash Memory | 1 GB (installed) / 2 GB (max) |
Expansion / Connectivity
| Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management | 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2 |
|---|---|
| Expansion Slots | 3 (total) / 2 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card – type II |
| Installed Modules Qty (Max) | 1 (installed) / 3 (max) |
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | 1 (installed) / 2 (max) |
Miscellaneous
| Rack Mounting Kit | Included |
|---|
Dimensions & Weight
| Width | 17.4 in |
|---|---|
| Depth | 20.3 in |
| Height | 7 in |
| Weight | 27.12 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% (non-condensing) |
