6415L3A Technical Specifications

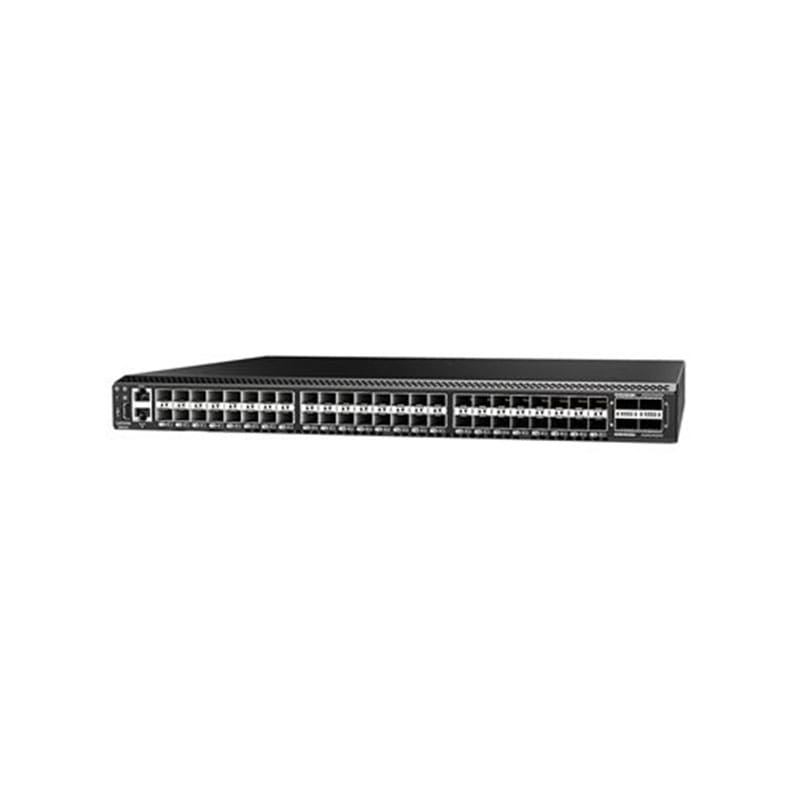

Lenovo ThinkSystem DB620S Switch 24 ports Managed Rack-mountable With 24x 16 Gbps SWL SFP+ Transceiver
| Device Type | Switch – 24 ports – Managed – with 24x 16 Gbps SWL SFP+ transceiver |
|---|---|
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 24 x 32Gb Fibre Channel SFP+ |
| Performance | Aggregate throughput: 2 Tbps ¦ Port-to-port latency: 780 ns |
| Capacity | Maximum frame size: 2112 byte ¦ Frame buffers: 15360 |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, LDAP, FCAP |
Expansion / Connectivity
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy | Scheme 1+1 |
| Power Provided | 250 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Features | Rear-to-front airflow |
Miscellaneous
| Cables Included | 1 x serial cable |
|---|---|
| Rack Mounting Kit | Included |
Dimensions & Weight
| Width | 44 cm |
|---|---|
| Depth | 35.6 cm |
| Height | 4.4 cm |
| Weight | 7.7 kg |
