5520-48SE Technical Specifications

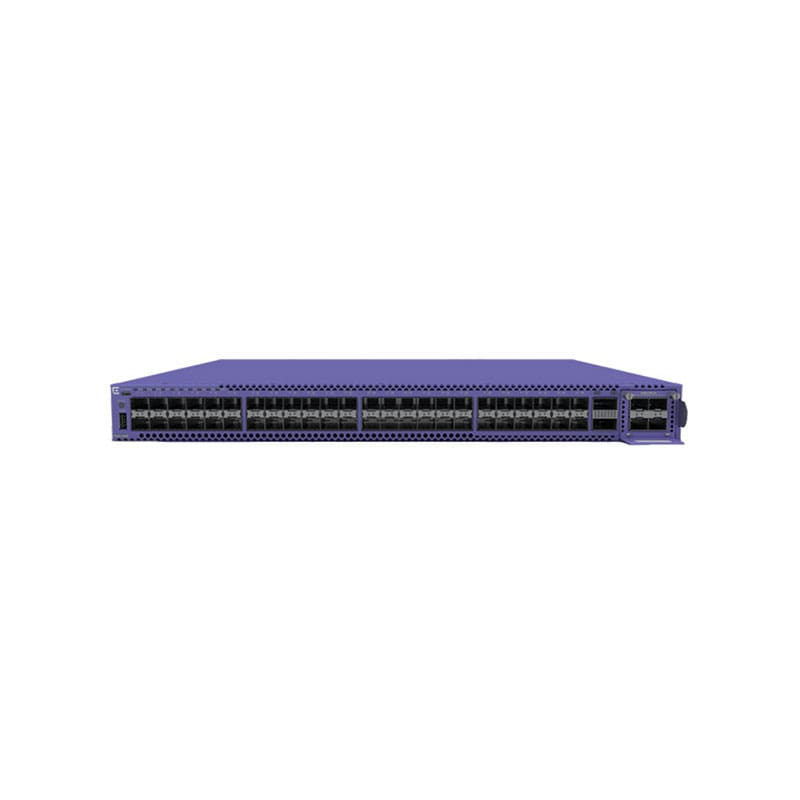

Extreme Networks ExtremeSwitching 5520 series 5520-48SE Switch 48 ports Managed Rack-Mountable
| Brand | Extreme Networks |
|---|---|
| Model | 5520-48SE |
| Manufacturer | EXTREME NETWORKS |
Network & Communication
| Form Factor (Hubs & Switches) | Rack-mountable |
|---|---|
| Manageable | Yes |
| Max Units In A Stack | 8 |
| Ports | 48 |
| Product Type | Switch |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Expansion Slots
| Expansion Slots | 1 (total) / 1 (free) x Versatile Interface Module (VIM) |
|---|
Connectivity
| Port Quantity | 48 |
|---|---|
| Port Type | 10/100 |
Power
| Frequency | 50/60 hertz |
|---|---|
| Power Consumption Operational | 61 watt |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
Technical Information
| Humidity Range Storage | 10 – 95% (non-condensing) |
|---|---|
| Max Operating Temperature | 122 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Operating Humidity | 10 – 95% (non-condensing) |
