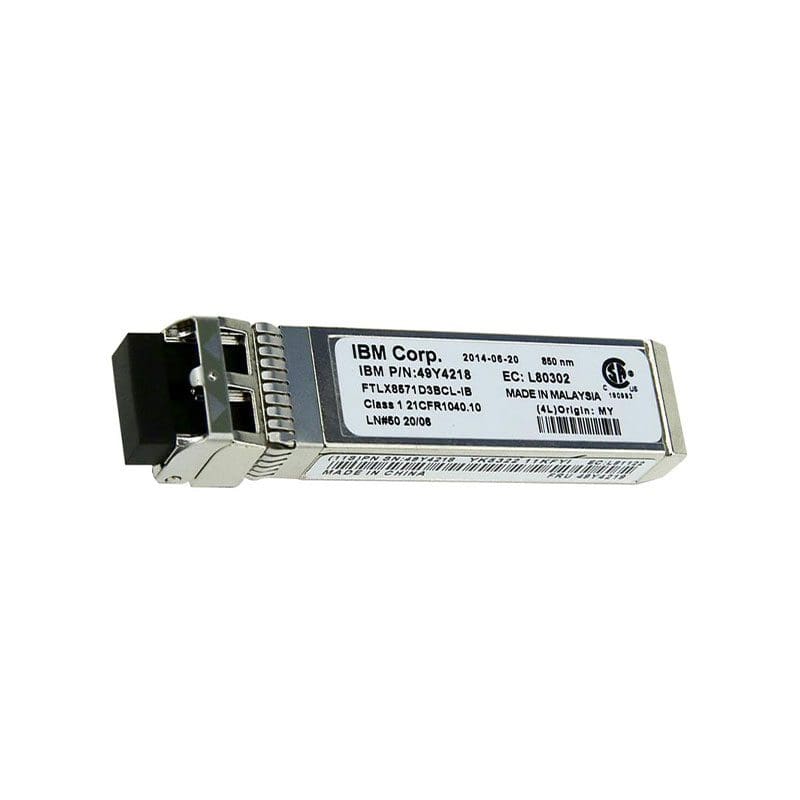

49Y4218 IBM Multi-mode Connector SFP+ Optical Transceiver Module
$129.00
Shipping calculated at checkout.
49Y4218 Technical Specifications
IBM 10Gbps 10GBase-SR Multi-mode Fiber 300m 850nm Duplex LC Connector SFP+ Optical Transceiver Module by QLogic
| Manufacturer | IBM |
|---|
Network
| Transceiver Type | SFP+ |
|---|---|
| Data Transfer Rate | 10 Gbps |
| Mode Multi-mode | Fiber (MMF) |
| Max. Distance | 300 m |
| Wavelength | 850 nm |
| Connector Type | Duplex LC Connector |
| brand_ice | LENOVO |
| Co2 Savings | 0 |
| SFP transceiver type | Fiber optic |
| Data transfer | 10 Gbp/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Wavelength | 850 nm |
| Cabling technology | 10GBASE-SR |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Hot-Plug support | Yes |
| Certification | MSA |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage relative humidity (H-H) | 10 – 85% |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
