46M2221 IBM Mellanox Connectx Dual Port PCI-E 2.0 4x
46M2221 Overview

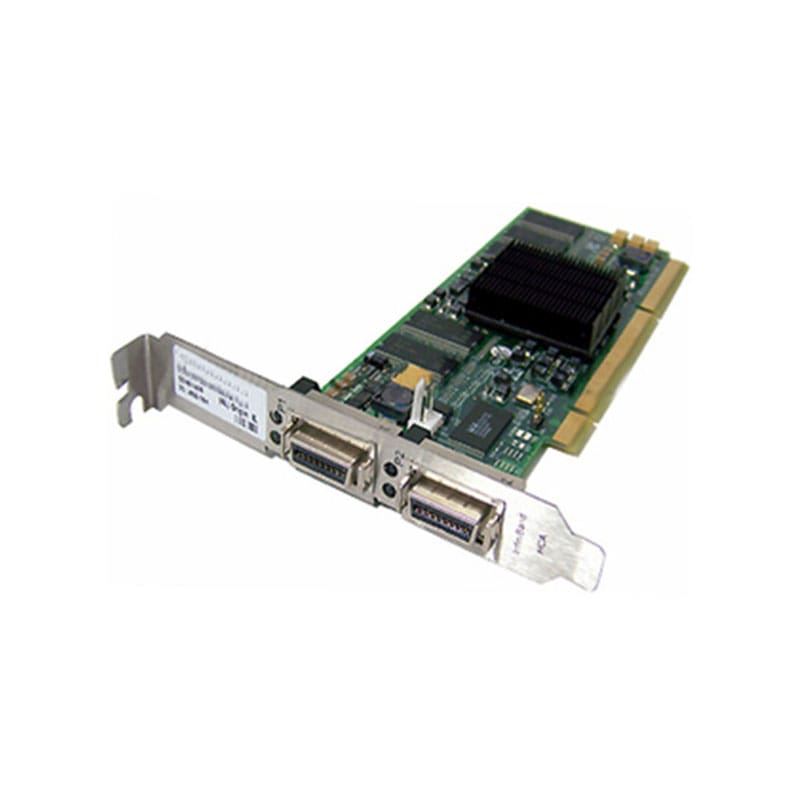

The IBM 46M2221 Mellanox Connectx Dual Port PCI-E 2.0 4x Ddr Infiniband Host Channel Adapter is a high-performance networking device that provides a low-latency, high-bandwidth connection between servers, storage systems, and other devices. It is based on the InfiniBand architecture, a high-speed interconnect technology that is used in high-performance computing, data centers, and other applications that require high-speed data transfer.
The device has two ports, each of which provides a maximum bandwidth of 40 Gb/s (20 Gb/s in each direction) and supports PCI Express 2.0 x8 host interface. It also supports Dual Data Rate (DDR) InfiniBand, a version of InfiniBand that uses double data rate signaling to provide higher bandwidth and lower latency.
$47.00
46M2221 Technical Specifications
IBM Mellanox Connectx Dual Port PCI-E 2.0 4x Ddr Infiniband Host Channel Adapter
| Manufacturer | IBM |
|---|---|
| Part Number or SKU# | 46M2221 |
| Product Type | Controller |
| Product Name | Infiniband |
- Technical Specifications
- Dual-Port Infiniband Host Channel Adapter
- PCI Express 2.0 X8 Host Interface
- 4x DDR Infiniband With Data Rates Up To 20 Gb/S Per Port
- 10 Gb/S Ethernet Mode, When Used With The Appropriate Cable Or Transceiver
- Rohs-Compliant
Mellanox Connectx IB Technology
| Compatible With | IBM System X3650 M2, X3650 M3, X3755 M3, X3850 X5, And X3950 X5 Servers |
|---|---|
| Supports | Various Operating Systems, Including Windows, Linux, And Vmware ESX/Esxi |
Low-Profile Form Factor
| Dimensions | 6.6 X 2.7 Inches (168 X 68.9 Mm) |
|---|
