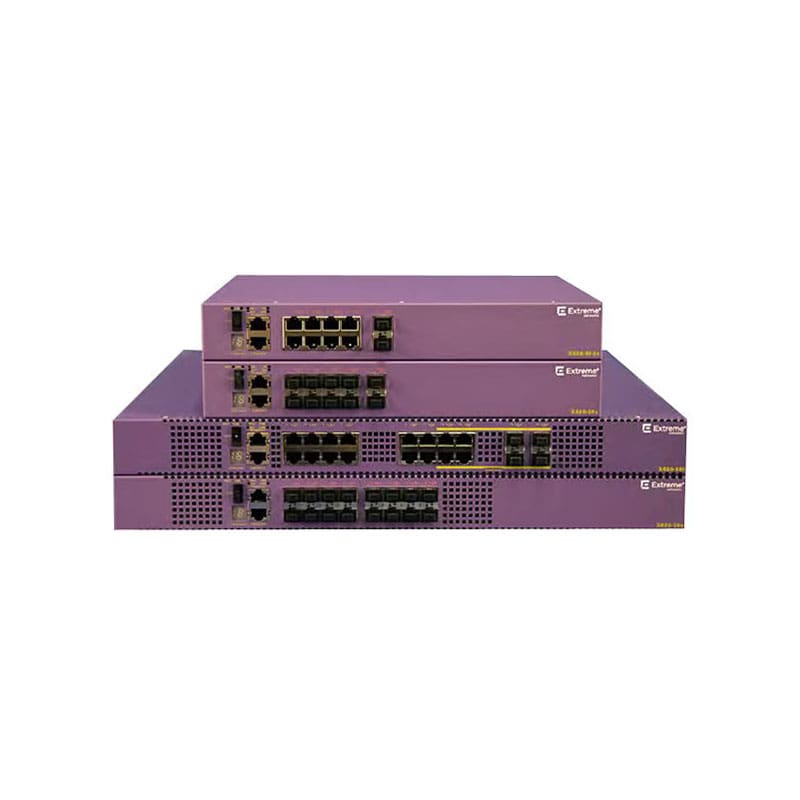

17401 Extreme Networks Switch 16 ports Rack-mountable

17401 Overview

The ExtremeSwitching X620 product family is a compact 10Gb Ethernet switch for 10Gb Edge applications in a small form factor. ExtremeSwitching X620 supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4 / IPv6 routing including policy-based switching / routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control both for ingress and egress.

$4,899.00

Shipping calculated at checkout.
or
SKU: 17401 Categories: Brand:

17401 Technical Specifications

Extreme Networks ExtremeSwitching X620 X620-16x-Base Switch 16 ports Rack-mountable

Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X620
Model X620-16x-Base
Manufacturer EXTREME NETWORKS

Processor

Clock Speed 1 GHZ

Memory

Flash Memory Installed 4 GB
Memory Technology DDR3 SDRAM
RAM Installed 1 GB

Network & Communication

Advanced Switching Layer 3
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Ports 16
Product Type Switch
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet

Connectivity

Interface Provided 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 16 x 10GBase-X SFP+
Port Quantity 16
Port Type 10 Gigabit SFP+

Power

Power Consumption Operational 63 watt
Power Supplies Supported 2
Redundant Power Supply Optional

Software

Software Type ExtremeXOS Edge
