16533 Technical Specifications

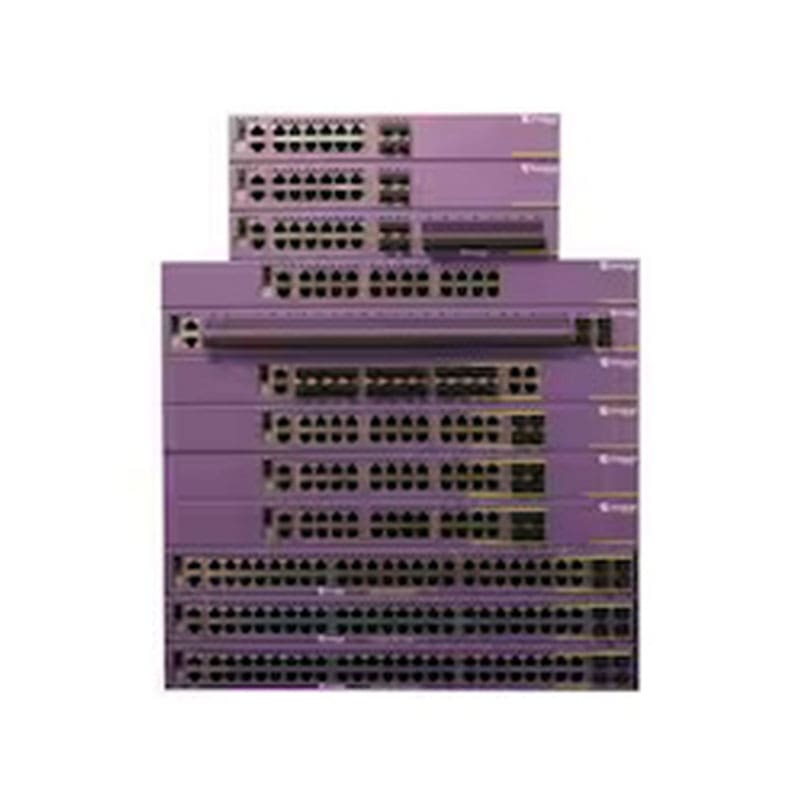

Extreme Networks X440-G2 1U RM Managed Switch X MIPS 1.0GHz 1GB RAM 4GB Flash 24xGbE PoE+ 8x10GbE SFP+ 1xPSU XOSEdge
- Actual Weight
- 9.40 lbs
Connectivity
| # Ports | 24 |
|---|---|
| # Ports | 8 |
| Contents |
|
General
| Chassis Form Factor | 1U Rackmount |
|---|---|
| Color | Purple |
| Form Factor | Rack-mountable |
| Warranty Period | Limited lifetime |
| Weight Taxonomy | 9.44lbs |
General Information
| Aggregate switching bandwidth | 128 Gbps |
|---|---|
| Forwarding performance | 95.2 Mpps |
| Latency (64-byte packets) | 4 µs |
| Virtual interfaces (VLANs) | 4094 |
| QoS hardware queues per port | 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
Memory
| RAM (installed) | 1GB |
|---|---|
| RAM Technology | DDR3 SDRAM |
| Memory | Notes |
- X MIPS 1.0GHz processor
- 1GB DDR3 SDRAM
- 4GB Flash memory
Networking
| Networking Type | Switch |
|---|---|
| O/S Notes | |
