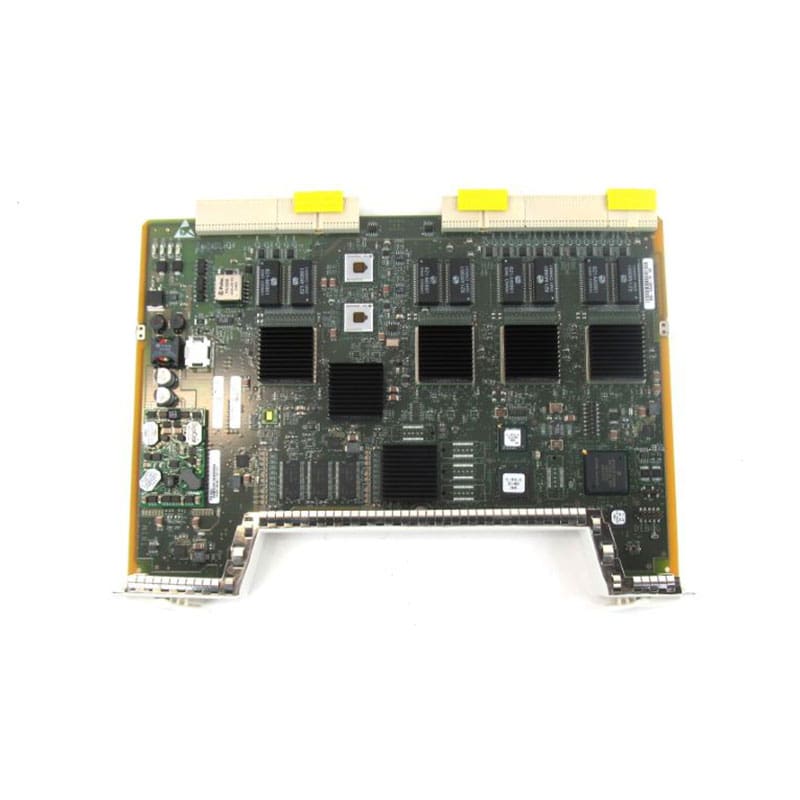

15454-DS3EC1-48= Cisco Interface Card Expansion module
15454-DS3EC1-48= Overview
Cisco Interface Card Expansion module. This new high-density card improves the Cisco ONS 15454 shelf utilization by enabling a single chassis to scale up to 192 DS-3 interfaces, or by freeing up shelf slots for other revenue generating services improving system density and flexibility.
$10,399.00
Shipping calculated at checkout.
15454-DS3EC1-48= Technical Specifications
Cisco Interface Card Expansion module
| Manufacturer | CISCO DS HARDWARE DIRECT |
|---|---|
| Brand | Cisco |
| Product Line | Cisco Interface Card |
| Packaged Quantity | 1 |
Line Properties
| Line Rate | DS-3/EC-1 |
|---|
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | Fiber optic |
| Data Link Protocol | SONET |
Ports
| Qty | 48 |
|---|---|
| Type | DS-3/EC-1 |
Interface Provided
| Interfaces | 48 x DS-3/EC-1 |
|---|
Power Device
| Power Consumption Operational | 45 watt |
|---|
Miscellaneous
| Color Category | White |
|---|
Dimensions & Weight
| Width | 0.7 inch |
|---|---|
| Depth | 9 inch |
| Height | 12.6 inch |
Environmental Parameters
| Min Operating Temperature | -40 degree Fahrenheit |
|---|---|
| Max Operating Temperature | 149 degree Fahrenheit |
| Humidity Range Operating | 5 – 95% (non-condensing) |
