10P6G-PCIE-SATA-CARD Technical Specifications

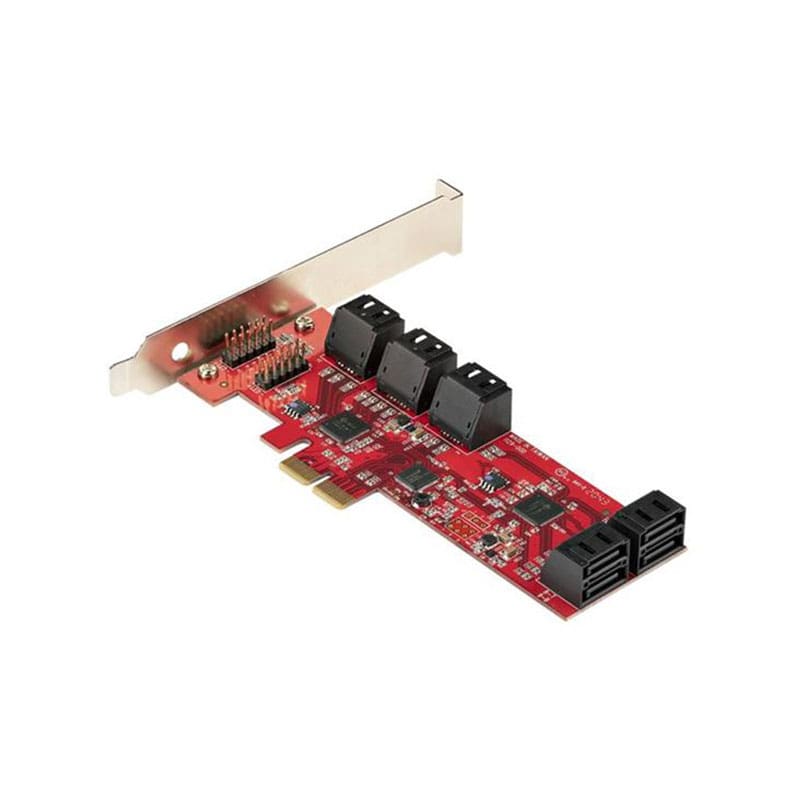

StarTech SATA PCIe Card, 10 Ports SATA Expansion Card, 6Gbps PCI Express SATA Card
| Brand | StarTech |
|---|---|
| Product Line | StarTech |
| Manufacturer | StarTech |
Processor
| Processor Brand | ASMedia |
|---|---|
| Processor Number | ASM10621 |
Storage
| Data Transfer Rate | 6 Gbit/s |
|---|---|
| Controller Interface | SATA 6Gb/s |
Connectivity
| Interface Provided | 10 x SATA 6Gb/s – SATA (internal) |
|---|
Power
| Power Device Type | None |
|---|
Technical Information
| Form Factor (Storage Controller) | Plug-in card |
|---|---|
| Host Bus Interface | PCIe 2.0 x2 |
| Max Operating Temperature | 85 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 20 – 80% |
| Supported Devices | Hard drive, Solid state drive |
Product Information
| Low Profile | Low profile |
|---|---|
| Packaged Quantity | 1 |
| Product Type | Storage controller |
Included Items
| Included Accessories | Low-profile bracket |
|---|
Dimensions & Weight
| Height | 13.9 centimetre |
|---|---|
| Weight | 75 gram |
| Width | 1.6 centimetre |
| Depth | 5.4 centimetre |
