0TS2512 Technical Specifications

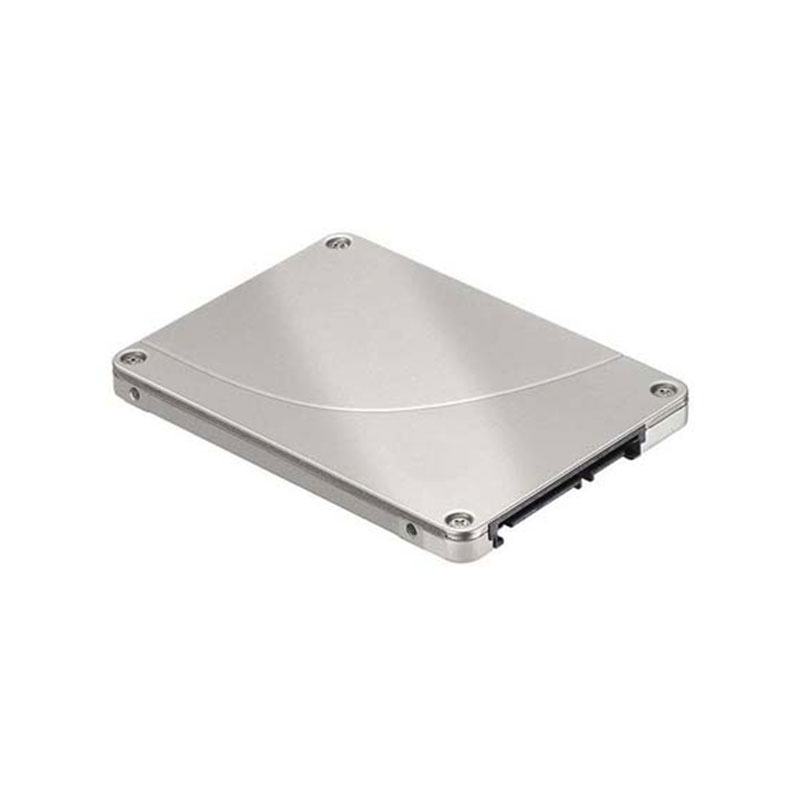

Western Digital Ultrastar DC SN655 61.44TB PCI Express Nvme x4 U.3 15mm TCG Ruby Solid State Drive
| Manufacturer | Western Digital |
|---|---|
| Manufacturer Part Number | 0TS2512 |
| Storage Capacity | 61.44TB |
| Internal | solid state drive |
- Enterprise data center class
- Read-intensive workload
- TCG Ruby hardware encryption
- Interface & Form Factor
- PCI Express 4.0 x4
- NVMe 1.4 protocol
- U.3 interface
- 2.5-inch form factor
- 15mm thickness
- NAND & Technology
- 3D TLC NAND
- Enterprise-grade reliability
- Power-loss protection
Performance
| Sequential read | up to 4300 MB/s |
|---|---|
| Sequential write | up to 3150 MB/s |
| Random read | up to 890,000 IOPS |
| Random write | up to 29,000 IOPS |
Endurance & Reliability
| Endurance | 1 DWPD |
|---|---|
| Mtbf | 2.5 million hours |
| Designed for | 24×7 operation |
| Power & Environment | |
Typical active power 16–20 W
| Operating temperature | 0°C to 70°C |
|---|
Physical
| 2.5-inch U.3 SSD | |
| Height | 15mm |
|---|---|
