0TS1620 Technical Specifications

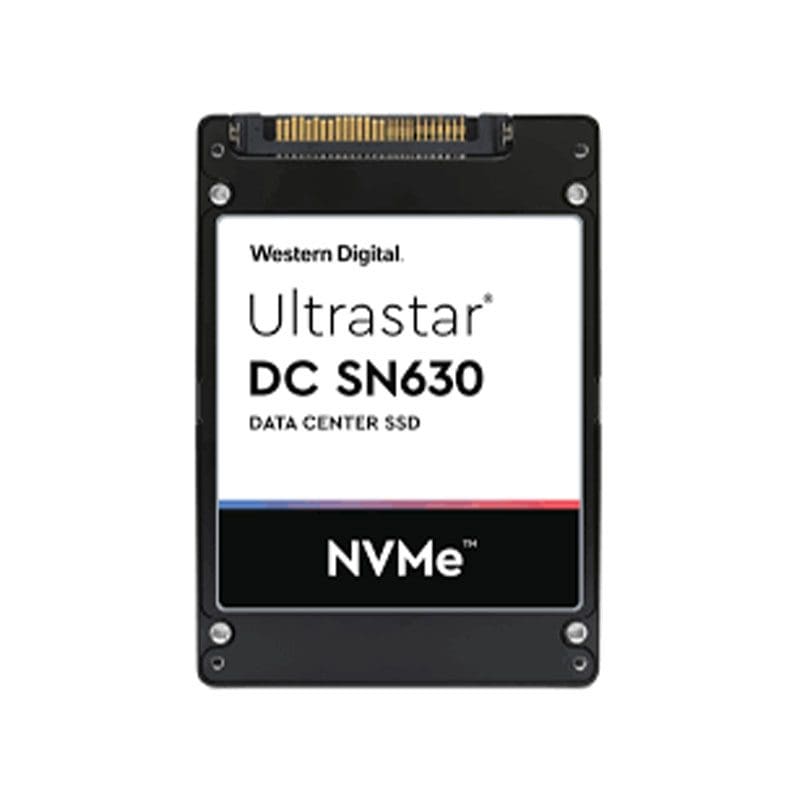

HGST Ultrastar DC SN630 7.68TB Pcie Gen 3.0 X4 U.2 2.5Inch Solid State Drive
General Information
| Brand | Hgst |
|---|---|
| Part | 0ts1620 |
| Product Line | Ultrastar Dc Sn630 |
| Product Type | Solid State Drive (SSD) |
| Product Name | Ultrastar Dc Sn630 7.68tb Solid State Drive |
Best Fit Applications
Cloud And Hyperscale Storage
| Software | Defined Storage |
|---|
- File, Block And Object Storage Applications
- Direct-Attached Storage (Das)
- Hyper-Converged Infrastructure
- Nosql Databases
- Content Delivery Network (Cdn)
- Virtualization
- Olap
- File/Web Servers
- Media Streaming & Vod
Key Features
| Storage Capacity | 7.68 Tb |
|---|---|
| Interface | Pcie Gen 3.0 X4 (Compliant To Nvme™ 1.3) |
| Form Factor | U.2 2.5-Inch Drive |
| Mtbf | 2 Million Hours |
Performance
| Sequential Read (Max, 128k) | 2620 Mbps |
|---|---|
| Sequential Write (Max, 128k) | 1290 Mbps |
| Random Read Iops (Max, 4k) | 363750 Iops |
| Random Write Iops (Max, 4k) | 54490 Iops |
| Random Mixed R70/W30 (Max, 4k) | 176100 Iops |
Physical
| Z-Height | 7.00 +0.2/-0.5 Mm |
|---|---|
| Width | 69.85 +/-0.25 Mm |
| Length | 100.45 Mm |
| Weight | 95 G |
