0TS1619 Technical Specifications

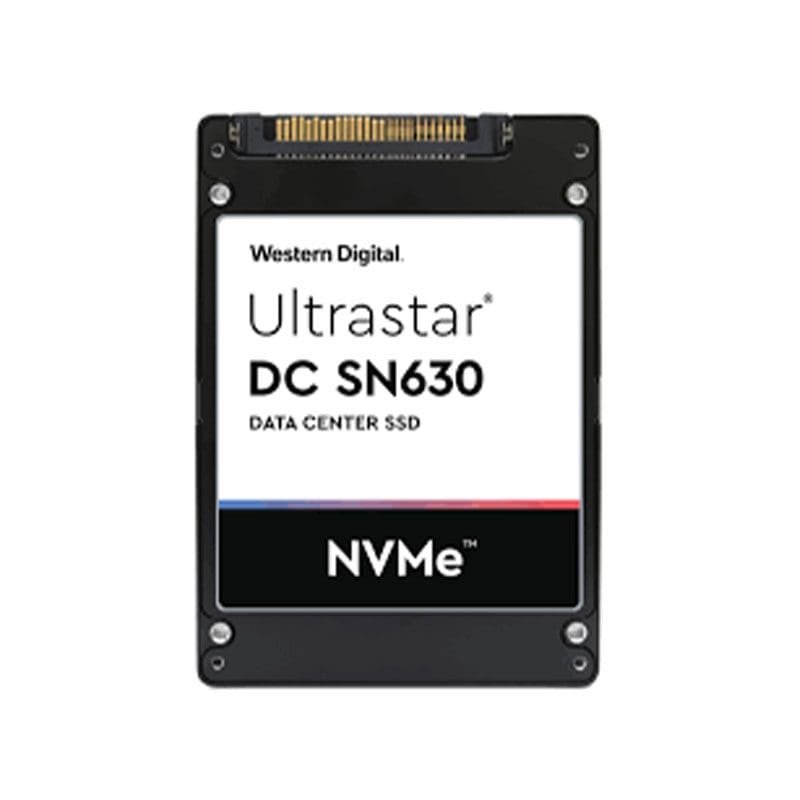

HGST Ultrastar DC SN630 3.84TB Pcie Gen 3.0 X4 U.2 2.5Inch Solid State Drive
General Information
| Brand | Hgst |
|---|---|
| Part | 0ts1619 |
| Product Line | Ultrastar Dc Sn630 |
| Product Type | Solid State Drive (SSD) |
| Product Name | Ultrastar Dc Sn630 3.84tb Solid State Drive |
Key Features
| Storage Capacity | 3.84 Tb |
|---|---|
| Interface | Pcie Gen 3.0 X4 (Compliant To Nvme™ 1.3) |
| Form Factor | U.2 2.5-Inch Drive |
| Mtbf | 2 Million Hours |
Performance
| Sequential Read (Max, 128k) | 2580 Mbps |
|---|---|
| Sequential Write (Max, 128k) | 1230 Mbps |
| Random Read Iops (Max, 4k) | 329020 Iops |
| Random Write Iops (Max, 4k) | 55820 Iops |
| Random Mixed R70/W30 (Max, 4k) | 165490 Iops |
Physical
| Z-Height | 7.00 +0.2/-0.5 Mm |
|---|---|
| Width | 69.85 +/-0.25 Mm |
| Length | 100.45 Mm |
| Weight | 95 G |
