0F38755 Technical Specifications

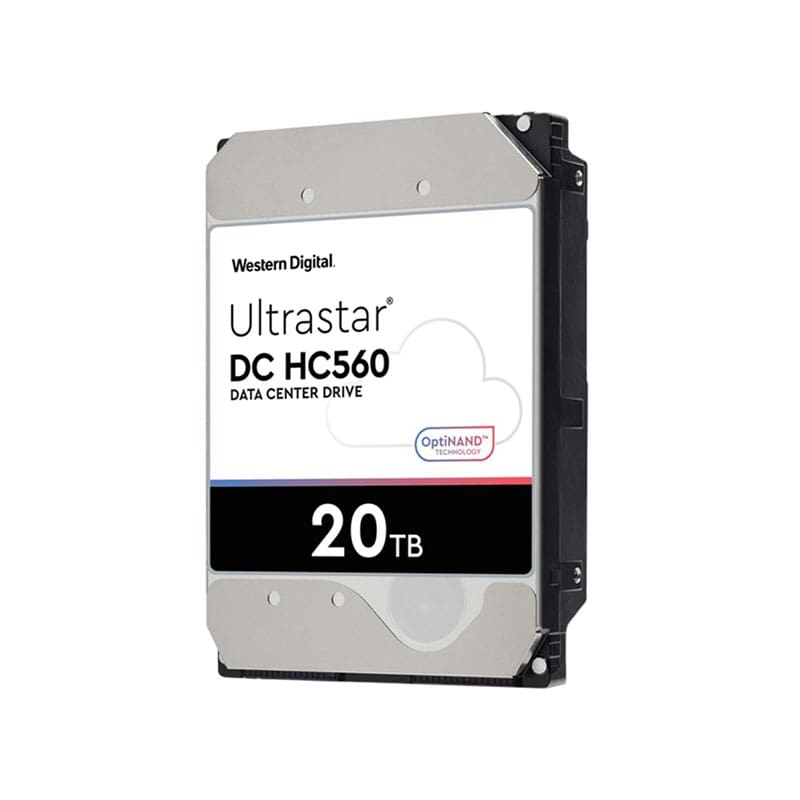

WD Ultra star DC HC560 – Hard Drive 20TB SATA 6Gb/s
| Brand |
- WD Product Line
- WD Ultra star DC HC560
|
| Manufacturer |
Western Digital |
Storage
| Average Latency |
4.16 millisecond |
| Buffer Size |
512 megabyte |
| Data Transfer Rate |
(Hard Drive) 600 MBps |
| Form Factor (Short) |
3.5″ |
| Form Factor (Short) (metric) |
8.9 cm |
| Hard Drive Capacity |
20 TB |
| Hard Drive |
Features |
24×7 availability, Energy-Assisted Magnetic Recording (EAMR), Helio Seal, Opti NAND technology, Secure Erase function, Triple State Actuator (TSA)
| Hard Drive |
Type |
| Internal |
hard drive |
| HD Interface |
- Serial ATA-600
- Load/Unload Cycles 600,000
|
| Max Internal Data Transfer Rate |
269 MBps |
| Non-Recoverable Errors |
|
| Spindle Speed |
(rpm) |
| 7200 revolutions per minute |
| Storage |
Interface |
- Serial ATA-600
- 24×7 Operation
- Yes
Connectivity
Interface Provided
Power
Power Consumption
| 6 Watt (idle), 7 Watt (active) |
Technical Information
| Compatible Bay |
3.5″ |
| Hard Drive Form Factor |
3.5″ |
| Hard Drive Form Factor |
(metric) 8.9 cm |
| Max |
Operating Temperature |
| 140 degree Fahrenheit |
| Max |
Storage Temperature |
| 158 degree Fahrenheit |
| Min Operating Temperature |
- 41 degree Fahrenheit
- Min Storage Temperature
- -40 degree Fahrenheit
- MTBF
- 2,500,000 Hours
|
| Shock |
Acceleration (Non-operating) |
| 250 gram |
| Shock |
Duration (Non-operating) |
| 2 ms half-sine wave |
| Vibration |
Acceleration (Non-operating) |
| 1.04 gram |
| Vibration |
Frequency Range (Non-operating) 2-200 Hz |
Product Information
| Packaged Quantity |
1 |
| Product Type |
Hard drive |
Dimensions & Weight
| Height |
1 inch |
| Weight |
24.34 ounce |
| Width |
4 inch |
| Depth |
5.8 inch |
