0F38353 Technical Specifications

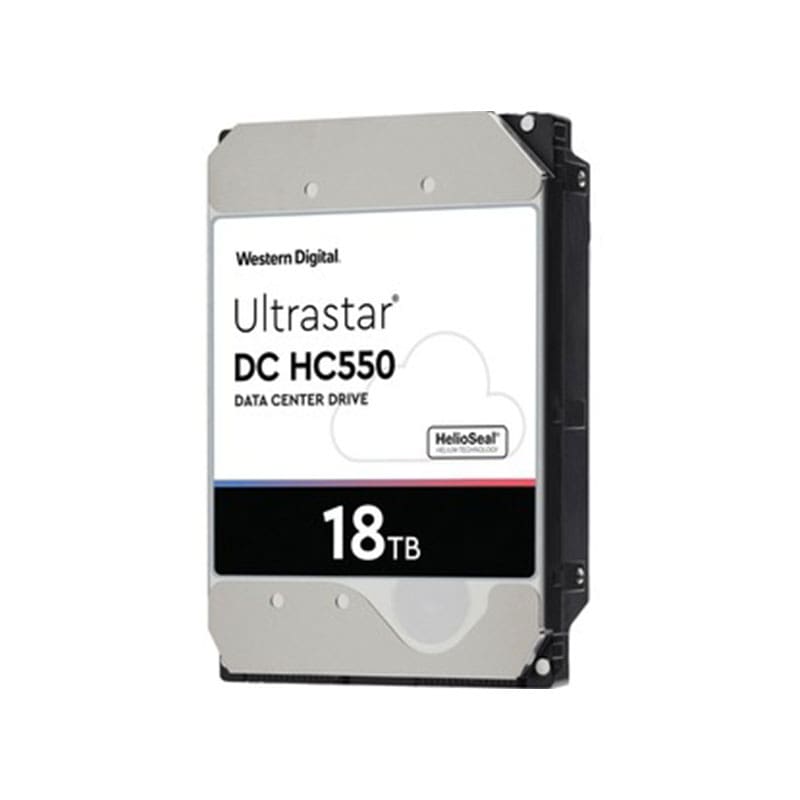

WD Ultra Star DC HC550 WUH721818AL5204 – Hard Drive
| Brand |
WD |
| Product Line |
WD UltraStar DC HC550 |
| Model |
WUH721818AL5204 |
| Manufacturer |
Hitachi Hard Drives |
Storage
| Average Latency |
4.16 millisecond |
| Buffer Size |
512 megabyte |
| Data Transfer Rate |
(Hard Drive) 1.2 GBps |
| Form Factor (Short) |
3.5″ |
| Form Factor (Short) (metric) |
8.9 cm |
| Hard Drive Capacity |
18 TB |
| Hard Drive |
Features |
Conventional magnetic recording (CMR), Energy-Assisted Magnetic Recording (EAMR), Helio Seal, Media Cache Plus, Rotational Vibration Safeguard (RVS), Sanitize Cryptographic Erase support, Sanitize Cryptographic Scramble support, Triple State Actuator (TSA), Two-Dimensional Magnetic Recording (TDMR)
| Hard Drive Type |
Internal hard drive |
| HD Interface |
- Serial Attached SCSI 3
- Load/Unload Cycles 600,000
|
| Max Internal Data Transfer Rate |
262 MBps |
| Non-Recoverable Errors |
1 per 10^15 |
| Spindle Speed (rpm) |
7200 revolutions per minute |
| Storage |
Interface |
Serial Attached SCSI 3
Connectivity
Interface Provided
Display & Graphics
Power
| Power Consumption |
5.8 Watt (idle), 8.8 Watt (typical) |
Technical Information
| Compatible Bay |
3.5″ |
| Hard Drive Form Factor |
3.5″ |
| Hard Drive Form Factor |
(metric) 8.9 cm |
| Max Operating Temperature |
140 degree Fahrenheit |
| Max Storage Temperature |
158 degree Fahrenheit |
| Min Operating Temperature |
41 degree Fahrenheit |
Min Storage Temperature -40 degree Fahrenheit
| Mtbf |
2,500,000 Hours |
| Shock |
Acceleration (Non-operating) 250 gram |
| Shock |
Acceleration (Operating) 50 gram |
| Shock |
Duration (Non-operating) 2 ms half-sine wave |
| Shock |
Duration (Operating) 2 ms half-sine wave |
| Vibration |
Acceleration (Non-operating) 1.04 gram |
| Vibration |
Acceleration (Operating) 0.67 gram |
| Vibration |
Frequency Range (Non-operating) 2-200 Hz |
| Vibration |
Frequency Range (Operating) 5-500 Hz |
Product Information
| Packaged Quantity |
1 |
| Product Type |
Hard Drive |
| Service Activation |
No |
Dimensions & Weight
| Height |
1 inch |
| Weight |
24.34 ounce |
| Width |
4 inch |
| Depth |
5.8 inch |
