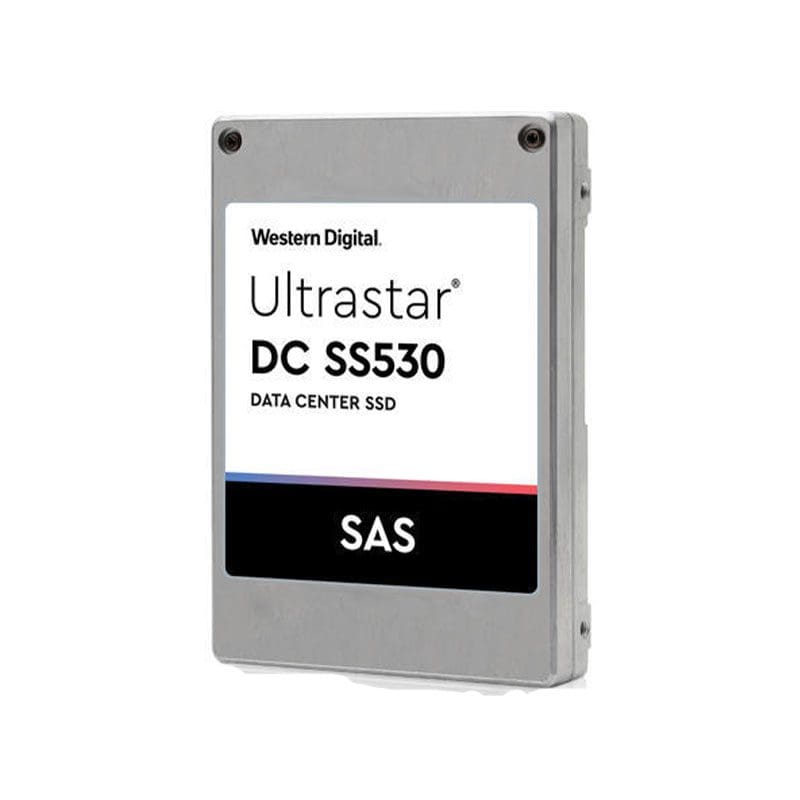

0B40342 HGST Ultrastar DC SS530 400GB SAS 12GBPS 3D TLC Nand
0B40342 Overview
0B40342 HGST Ultrastar DC SS530 400GB SAS 12GBPS 3D TLC Nand ISE 2.5Inch Sff Solid State Drive.
$470.00
Shipping calculated at checkout.
0B40342 Technical Specifications
HGST Ultrastar DC SS530 400GB SAS 12GBPS 3D TLC Nand ISE 2.5Inch Sff Solid State Drive
General Information
| Brand | Hgst |
|---|---|
| Part | 0b40342 |
| Product Type | Solid State Drive (SSD) |
| Product Series | Ultrastar Dc Ss530 |
| Product Name | Ultrastar Dc Ss530 Enterprise Solid State Drive. |
Applications/Environments
- Ultra-High Performance Tier-0 Enterprise Storage
- Enterprise-Class Servers And High Performance Computing
- Software-Defined Storage (Sds)
- Online Transaction Processing (Oltp)
- Financial And E-Commerce
- Database Analytics
Technical Information
| Interface | Sas 12gbps Supports Wideport @ 12gbps |
|---|---|
| Storage Capacity | 400 Gb |
| Form Factor | 2.5-Inch |
| Flash Memory Technology | 3d Tlc Nand |
| Annualized Failure Rate (Afr) | 0.35 % |
| Mtbf | 2.5 Million Hours |
Performance
| 128kb Sequential Read (Max) | 2150 Mbps |
|---|---|
| 128kb Sequential Write (Max) | 2120 Mbps |
| 4kb Random Read (Max) | 440000 Iops |
| 4kb Random Write (Max) | 320000 Iops |
| Mixed 4kb Random Read/Write (Max 70%R/30%W) | 430000 Iops |
Physical Size
| Z-Height (Max) | 15.0 Mm |
|---|---|
| Dimensions (W X D) | 70.1 X 100.45 Mm |
| Weight (Typical) | 175 G |
