00FN209 Technical Specifications

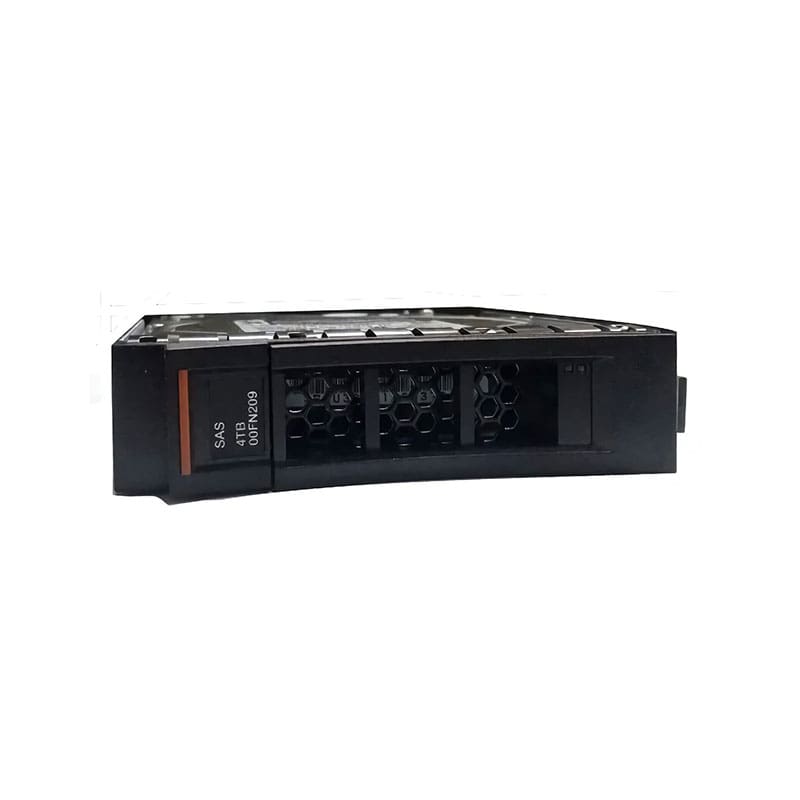

IBM 4TB 7.2KRPM SAS 12GBPS 3.5Inch Nearline Hot Hard Drive
| MPN | 00FN209 |
|---|---|
| Type | Hard Drive – Hot – Swap – Nearline |
| Capacity | 4 TB |
| Form Factor | 3.5 X 1/3H |
| Interface | SAS 12GB/S |
| Data Transfer Rate | 1200 MBPS |
| Spindle Speed | 7200 RPM |
| Features | Advanced Format Technology , S.M.A.R.T., 256-BIT AES |
| Designed For | Storage DX8200C 5120, SYSTEM X3250 M5 (3.5), X3250 M6 (3.5), X3500 M4 (3.5), X3550 M5 (3.5), X3650 M4 (3.5), X3650 M5 (3.5) |
| Extended Specifications Device Type | Hard Drive – Hot-Swap – Nearline |
| Capacity | 4 TB |
| Form Factor | 3.5 X 1/3H |
| Interface | SAS 12GB/S |
| Features | Advanced Format Technology , S.M.A.R.T., 256-BIT AES |
| Performance Drive Transfer Rate | 1200 MBPS (ExternaL) |
| Spindle Speed | 7200 RPM |
| Expansion & Connectivity Interfaces | 1 X SAS 12 GB/S |
| Compatible Bays | 1 X Hot-Swap – 3.5 X 1/3H |
| Environmental Parameters Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 – 90% (Non-Condensing)Dimension and Weight |
| Width | 4 Inch |
| Depth | 5.8 Inch |
| Height | 1 Inch |
| Weight | 1.52 LBS |
