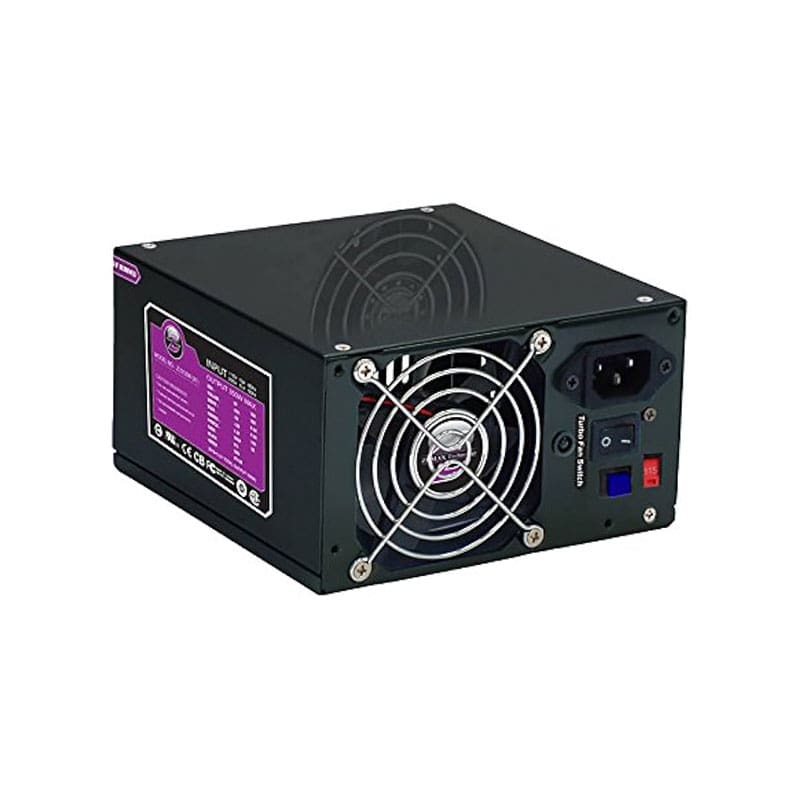

ZU-550W Technical Specifications
TOPOWER X3 Series 550 W ATX12V Version 2.0 / EPS12V SLI Ready Power Supply
Brand: TOPOWER
Series: X3 Series
Model: ZU-550W
Type: ATX12V Version 2.0 / EPS12V
Maximum Power: 550 W
Fans: 2 x 80mm Fan (Front & Rear)
PFC: No
Main Connector: 20+4Pin
+12V Rails: 2
PCI-Express Connector: 2 x 6-Pin
SATA Power Connector: 2
SLI: SLI Ready
Haswell Support: Yes
Modular: No
Over Voltage Protection: Yes
Input Voltage: 115 / 230 V
Input Frequency Range: 50/60 Hz
Input Current: 10A @ 115V, 5A @ 230V
Output: +3.3V@30A, +5V@50A, +12V1@20A, +12V2@20A, [email protected], [email protected], +5VSB@3A
Dimensions: 6.25″ x 5.9″ x 3.4″
Weight: 6
