ZT-T20610E-10M Technical Specifications
ZOTAC GAMING GeForce RTX 2060 SUPER MINI
Specifications
GPUGeForce RTX 2060 SUPER
CUDA cores2176
Video Memory8GB GDDR6
Memory Bus256-bit
Engine ClockBoost: 1650 MHz
Memory Clock14.0 Gbps
PCI Express3.0

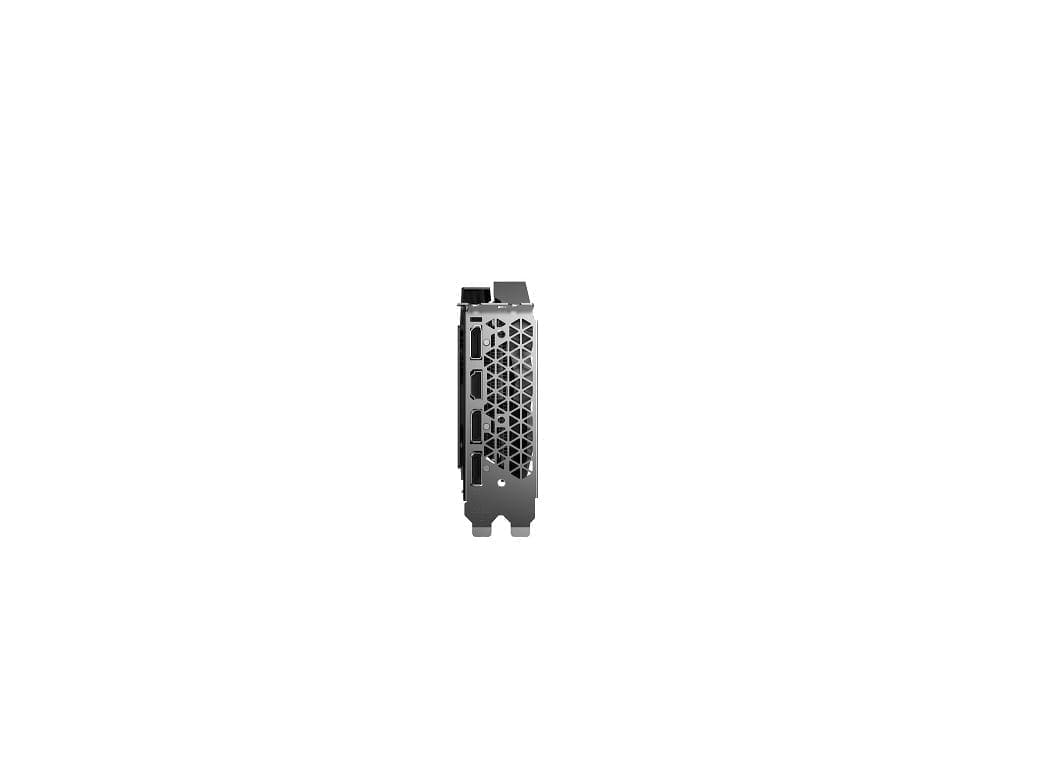

Display Outputs3 x DisplayPort 1.4 (4096×2160@60Hz)
HDMI 2.0 (3840×2160@60Hz)
HDCP SupportYes
Multi Display CapabilityQuad Display
Recommended Power Supply550W
Power Consumption175W
Power Input8-pin
DirectX12 API feature level 12_1
OpenGL4.5
CoolingDual fan
Slot SizeDual Slot
SLINo
Supported OSWindows 10 / 7 64-bit, Linux 64-bit
Card Length209.6mm x 119.3mm x 41mm (8.3in x 4.7in x 1.61in)
AccessoriesUser Manual
