ZT-T20610D-10P Technical Specifications

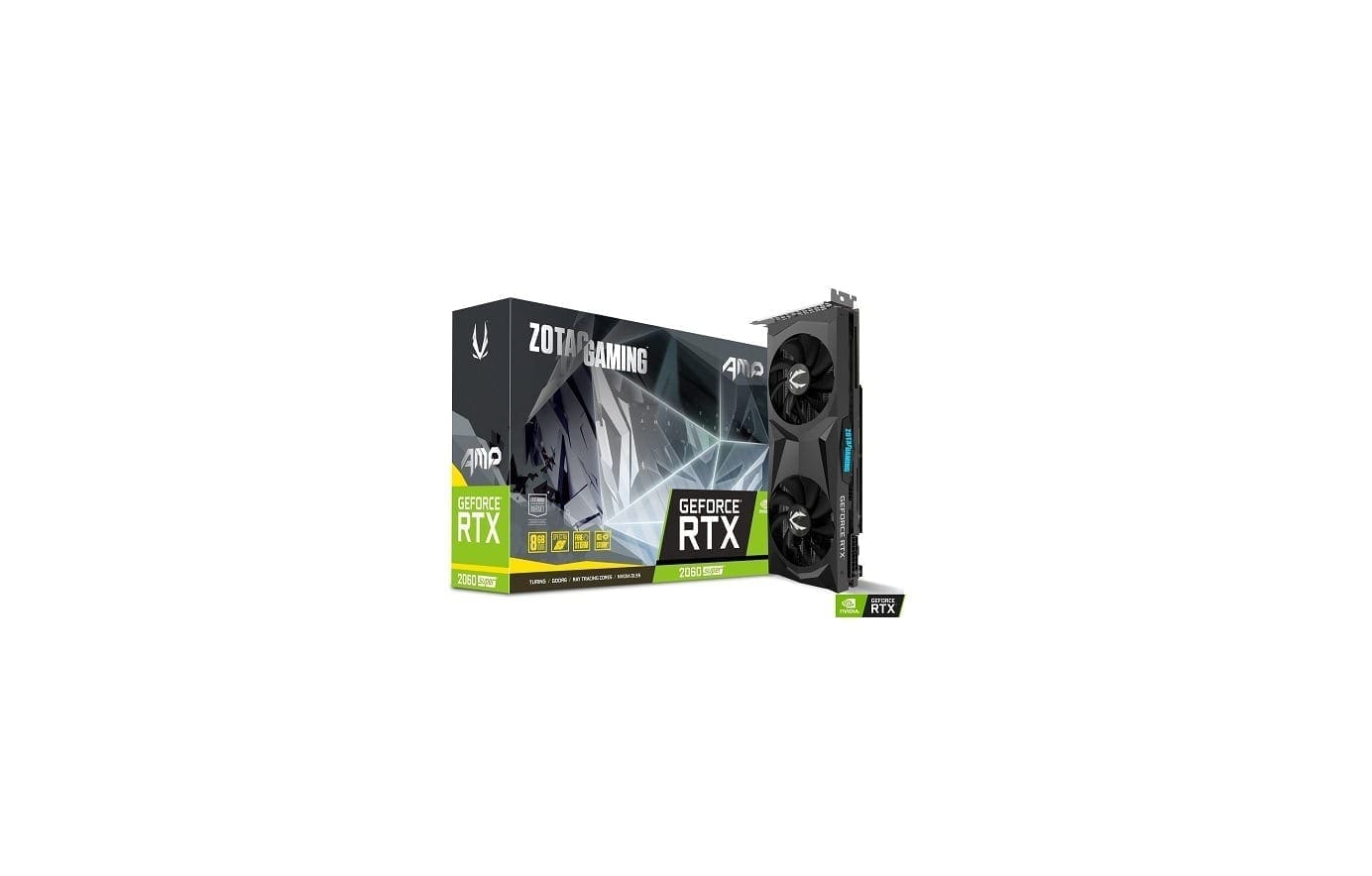

ZOTAC GAMING GeForce RTX 2060 SUPER AMP
Specifications
GPUGeForce RTX 2060 SUPER
CUDA cores2176
Video Memory8GB GDDR6
Memory Bus256-bit
Engine ClockBoost: 1680 MHz
Memory Clock14.0 Gbps
PCI Express3.0
Display Outputs3 x DisplayPort (4096×2160@60Hz)
HDMI 2.0 (3840×2160@60Hz)
HDCP SupportYes
Multi Display CapabilityQuad Display
Recommended Power Supply550W
Power Consumption175W
Power Input6-pin 8-pin
DirectX12 API feature level 12_1
OpenGL4.5
Cooling2 x 90mm fans
Slot SizeDual Slot
SLINo
Supported OSWindows 10 / 7 64-bit, Linux 64-bit
Card Length268mm x 113mm x 38mm (10.55in x 4.45in x 1.50in)
AccessoriesDual 6-pin to 8-pin adapter
Dual 4-pin to 6-pin adapter
User Manual
