ZD41022-D01000EZ Technical Specifications

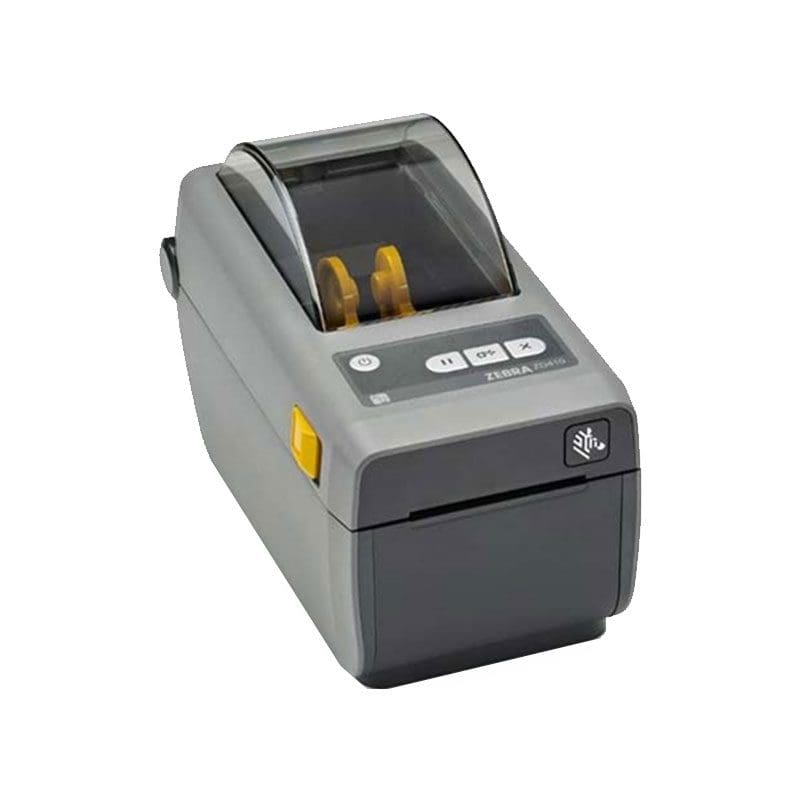

Zebra ZD410 Label printer B/W Direct Thermal
Manufacturer
Zebra Technologies
Brand
Zebra
Product Line
Zebra
Model
ZD410
Office Machine
Type
Printer
Functions
Printer
Printing Technology
Direct thermal
Printing Output Type
Monochrome
RAM
Technology
SDRAM
Installed Size
256 megabyte
Flash Memory
Installed Size
512 megabyte, 512 megabyte
Label Printer
Roll Maximum Outer Diameter
5 inch
Roll Core Diameter
0.5 in, 1 in, 1.5 in, 2 in, 3 in
Features
Reflective media sensor, Transmissive media sensor
Printer
Type
Label printer
Connectivity Technology
Wired
Max Printing Width
2.2 inch
Max Printing Length
39 inch
Media Type
Die cut labels, Fanfold labels, Receipt paper, Tag stock, Wristband labels
Media Sizes
Roll (2.35 in)
Media Thickness Range
0.003 in – 0.01 in
Language Simulation
EPL2, ZBI, ZPL II
Printing
Max Resolution B/W
203 dpi
Max Printing Speed B/W
359.1 Inches per minute
Printer Output
Print Speed
Up to 359.1 inch/min – B/W – 203 dpi
Printer Media
Media Feeders
1 x manual – 1 roll – Roll (2.35 in)
Scanner
Type
None
Printer Fonts
Fonts Included
16 x bitmapped ZPL II, 2 x scalable ZPL, 5 x expandable EPL2
Barcode
Barcodes
Aztec code, Codabar, CODABLOCK, Code 11, Code 128, Code 39, Code 49, Code 93, Data Matrix, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, ISBT 128, LOGMARS, MaxiCode, MicroPDF417, MSI, PDF417, PLANET, Plessey, Postnet, QR code, Standard 2 of 5, UPC-A, UPC-E
Networking
Type
Print server
Document & Media Handling
Media Type Class
Other
Media Size Class
Other
Max Media Size
Roll (2.35 in)
Connectivity
Interface
USB 2.0, USB host
Interface Required
Connections
1 x LAN – RJ-45, 1 x USB 2.0 – 4 pin USB Type B, 1 x USB host – 4 pin USB Type A
Software
Type
Drivers & Utilities
Power Device
Type
Power supply
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 hertz
Power Factor Correction
Yes
Battery
Form Factor
None
Miscellaneous
Color Category
Black, Gray
Compliant Standards
BIS, BSMI, CCC, C-Tick, cTUVus, CU, EN 300 328, EN 301 893, EN 301.893, EN 61000-3-2, EN 61000-3-3, EN 62311, EN55022 Class B, EN55024, FCC Class B certified, FCC Part 15.209, FCC Part 15.247, IC, ICES-003, IEC 60601-1, IEC 60950-1, INMETRO, KCC, NOM, RSS-247, S Mark, SABS, VCCI
Environmental Standards
ENERGY STAR
Yes
Dimensions & Weight
Width
4.5 inch
Depth
8.7 inch
Height
5.9 inch
Weight
2.2 lbs
Environmental Parameters
Min Operating Temperature
39.9 degree Fahrenheit
Max Operating Temperature
105.8 degree Fahrenheit
Humidity Range Operating
10 – 90% (non-condensing)
