Y8W2Y Technical Specifications

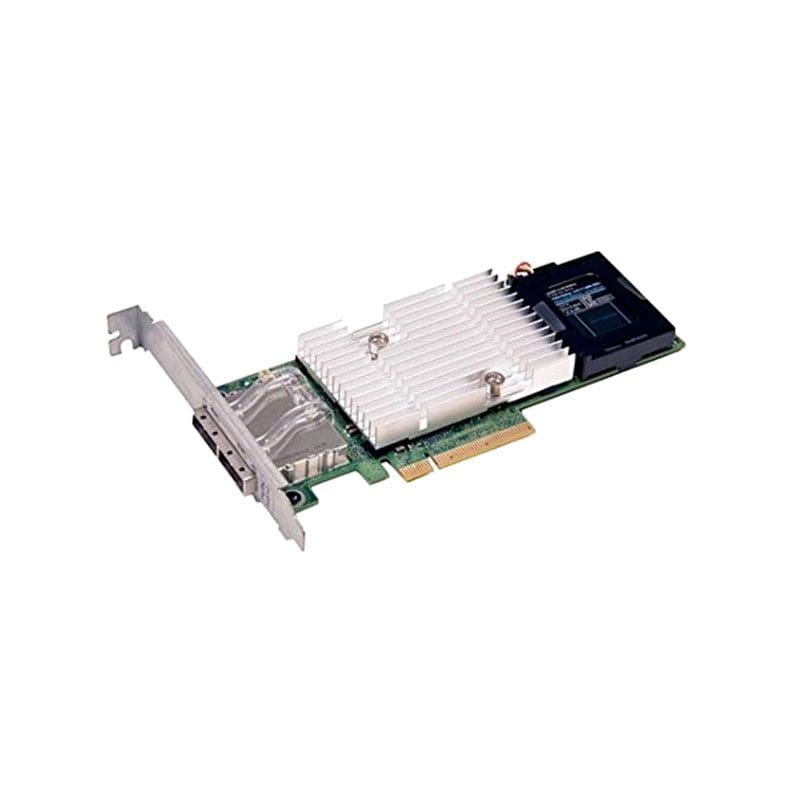

DELL Perc H810 6gb/s Pci-express 2.0 Sas Raid Controller With 1gb Nv Cache
Category Dell Controller
Sub-Category RAID Controller
Generation PCI-Express
Part Number Y8W2Y
Products ID 725819
Device Type Storage Controller (RAID) – Plug-in Card
Interface Type PCI Express 2.0 x8
Data Transfer Rate Up to 6Gb/s per Port
Connectors Two External mini-SAS SFF8088
Non-Volatile Cache 1GB
CacheCade 1.1
Battery (Onboard) Yes
Max Hard Drives Supported 192
SAS Controller 2 x Dual-Core PowerPC
RAID Controller RAID 0 1 5 6 10 50 60
Operating Voltage +3.3V
