XYD50 Technical Specifications

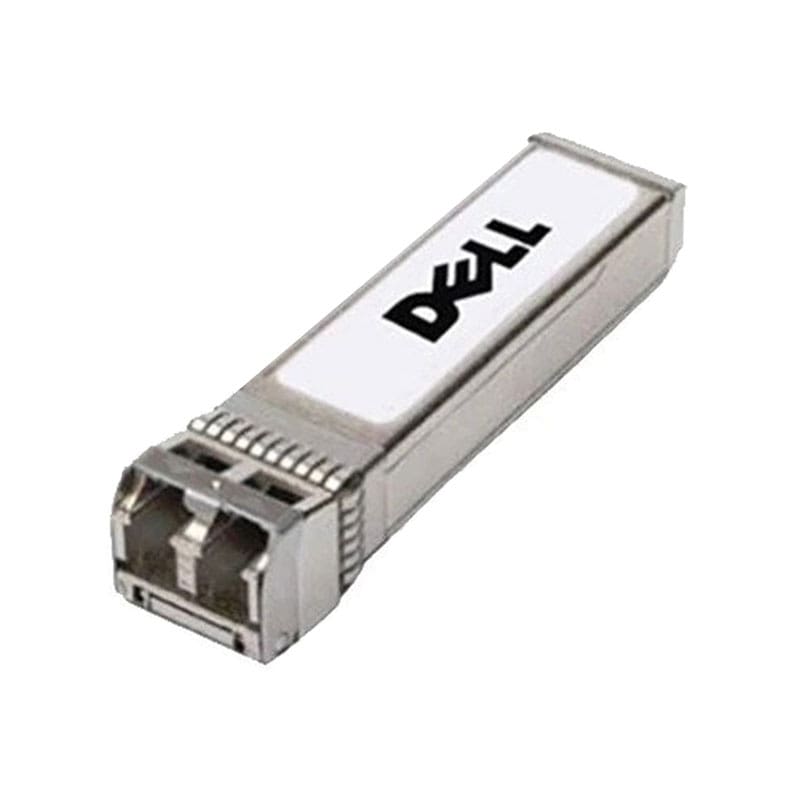

Dell Intel 10GB 850nm 300m 10GBASE-SR SFP LC Transceiver Module
Device Type: SFP+ transceiver module
Form Factor: Plug-in module
Cabling Type: 10GBase-SR
Data Transfer Rate: 10 Gbps
Data Link Protocol: 10 GigE
Max Transfer Distance: 300 m
Hot-pluggable Sfp+ Footprint
Supports Rate Selectable 1.25 Gb/s Or 9.95 To 10.3 Gb/s Bit Rates
Power Dissipation < 1w
Rohs-6 Compliant (lead-free)
Single 3.3vpower Supply
Maximum Link Length Of 400m On Om4 Mmf
Uncooled 850nm Vcsel Laser
Receiver Limiting Electrical Interface
Duplex Lc Connector
Built-in Digital Diagnostic Functions
Commercial Temperature Range: -5°c To 70°c
