XS800LE70024 Technical Specifications

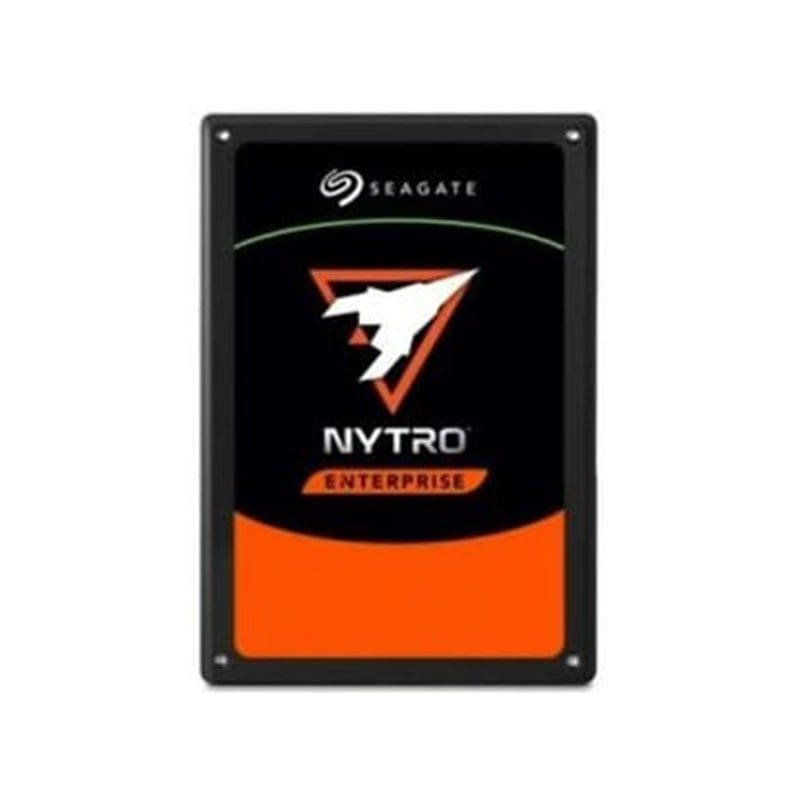

Seagate Nytro 3531 solid state drive 800GB SAS 12Gb/s
Manufacturer :Seagate Technology
Brand :Seagate
Product Line :Seagate Nytro 3531
Model :XS800LE70024
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :2.5″
Form Factor (metric) :6.4 cm
Form Factor (Short) :2.5″
Form Factor (Short) (metric) :6.4 cm
Storage Interface :Serial Attached SCSI 3
Interface :Serial Attached SCSI 3
Capacity :800 GB
NAND Flash Memory Type :3D enterprise triple-level cell (eTLC)
Data Transfer Rate :2.4 GBps
Internal Data Rate :2150 MBps
Internal Data Rate (Write) :1000 MBps
4KB Random Read :210000 IOPS
4KB Random Write :100000 IOPS
Non-Recoverable Errors :1 per 10^17
Drive Writes Per Day (DWPD) :3
SSD Endurance :4300 TB
Features :Dual Port, Error Correction Code (ECC), Mixed-Workload Endurance, Power loss data protection, Seagate Secure, T10 Data Integrity Field (DIF), Tamper-resistant
Interface Provided
Interfaces :2 x SAS 12 Gb/s
Bay Required
Compatible Bay :2.5″
Power Consumption
Power Consumption :4.4 Watt (idle)
Miscellaneous
Encryption Algorithm :FIPS 140-2
Encryption Details :Self-Encrypting Drive (SED), TCG Encryption
Hardware Encryption :Yes
Compliant Standards :Common Criteria, ISO/IEC 27040:2015, NIST SP800-88
Dimensions & Weight
Width :2.8 inch
Depth :4 inch
Height :0.6 inch
Weight :5.82 ounce
