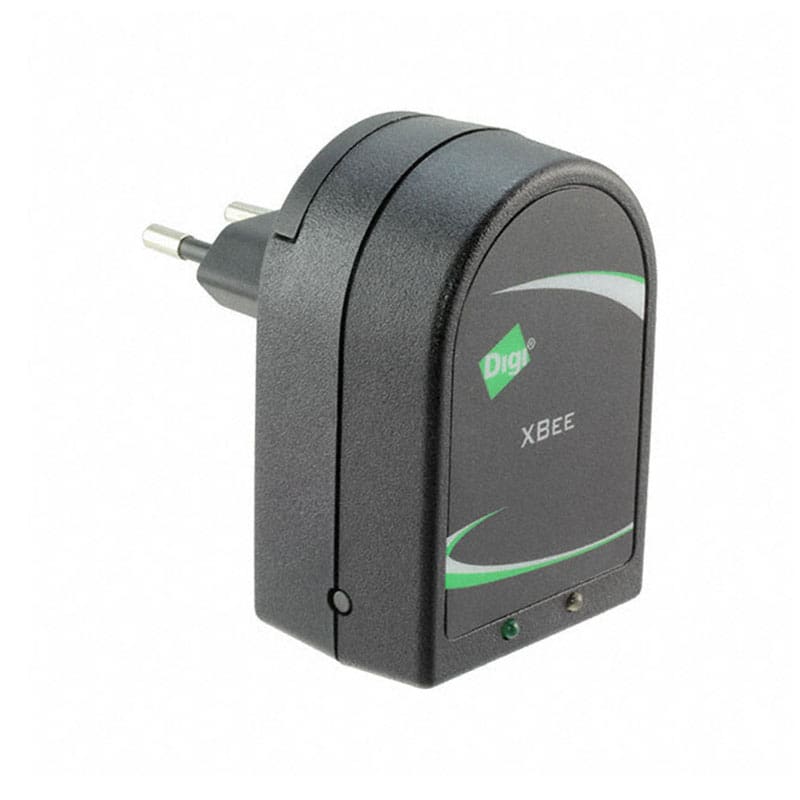

XR-Z14-CW1P2 Technical Specifications
Digi International
Manufacturer: Digi International
Part #: XR-Z14-CW1P2
Antenna Connector Type Internal
Data Rate 250 kb/s
Dimensions 73 mm x 50 mm x 35 mm
Frequency 2.4 GHz
Maximum Operating Temperature + 70 C
Minimum Operating Temperature 0 C
Operating Supply Voltage 85 VAC to 265 VAC
Output Power 10 dBm
Protocol – ANT, Thread, Zigbee – 802.15.4 Zigbee
Range 200 ft, 2500 ft
Sensitivity – 102 dBm
Standard Pack Qty 1
Subcategory Wireless & RF Modules
Supply Current Receiving –
Supply Current Transmitting –
Supply Voltage – Max 265 VAC
Supply Voltage – Min 85 VAC
