XFP-10G-CWDM1591 Technical Specifications

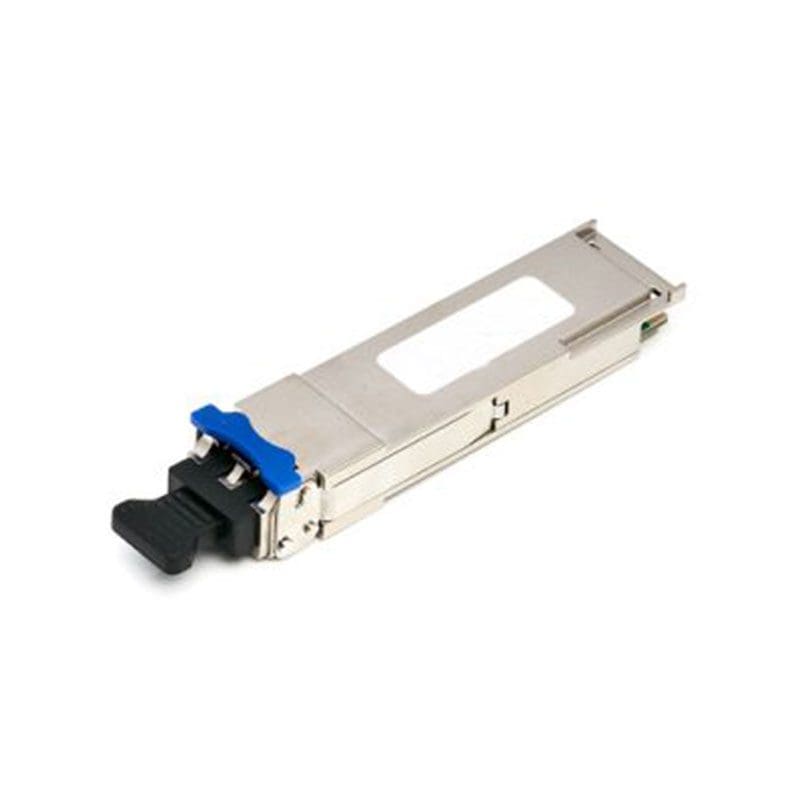

Juniper Networks 10G CWDM XFP, 8-Channel Using C-Band
Product Name: 10G CWDM XFP, 8-Channel Using C-Band, 70
Manufacturer Part Number: XFP-10G-CWDM1591
Product Type: XFP
Ethernet Technology: 10 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 10GBase-CWDM
Environmentally Friendly: Yes
Fiber Mode Supported: Single-mode
Interfaces / Ports Details: 1 x 10GBase-CWDM Network
Transmitter wavelengths (range): 1584.5 nm to 1597.5 nm
Transmitter output power, each lane (minimum): 4 dBm
Transmitter output power, each lane (maximum): 0 dBm
Receiver input power, each lane (minimum): -24 dBm
Receiver input power, each lane (maximum): -8 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Distance: 70 km
Maximum Power consumption (W): 3.5 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
