XENPAK-1XGE-ER Technical Specifications
Juniper-10gbase-Er 1550nm 40km Xenpak
General Information
Manufacturer: Juniper Networks, Inc
Brand Name: Juniper

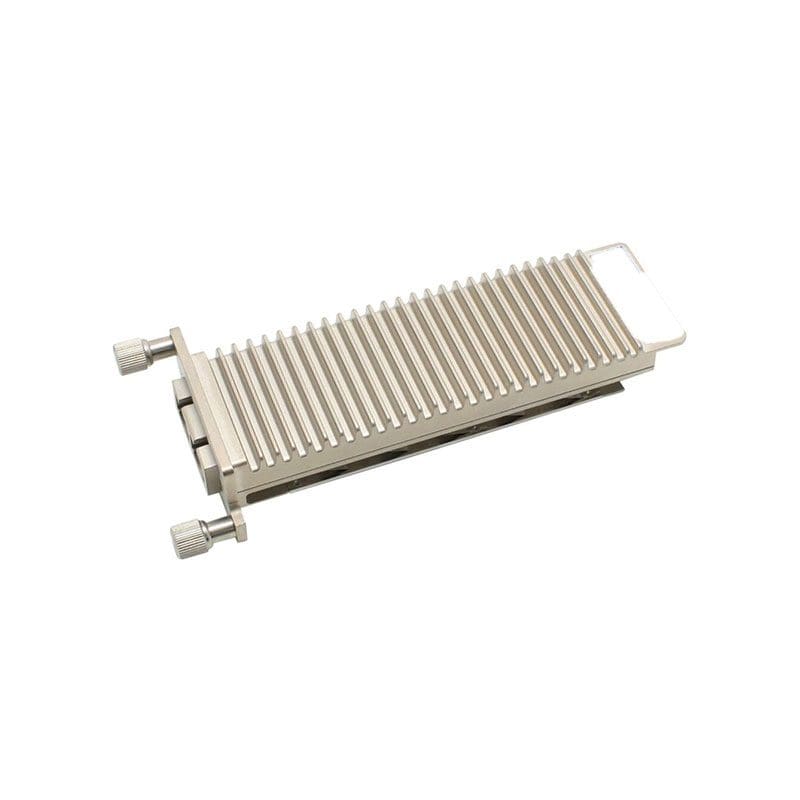

Product Name: 10GBase-ER XENPAK Optic Module
Product Type: XENPAK
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x 10GBase-ER
Interfaces/Ports Details: 1 x SC Duplex 10GBase-ER
Media & Performance
Connectivity Media: 9/125 µm Single-mode Optical Fiber (SMF)
Data Transfer Rate: 10 Gbps Gigabit Ethernet
Ethernet Technology: 10 Gigabit Ethernet
Miscellaneous
Additional Information Length: 25-mile / 40-km reach on 9/125 micrometer SMF
Wavelength: 1,530 to 1,565 nm
Average launch power: -4.7 through 4 dBm
Receiver saturation: 1dBm
Receiver sensitivity: -11.3 dBm
Compatibility Supported Module: PC-1XGE-XENPAK
Supported Platform: M320, T320, T640
