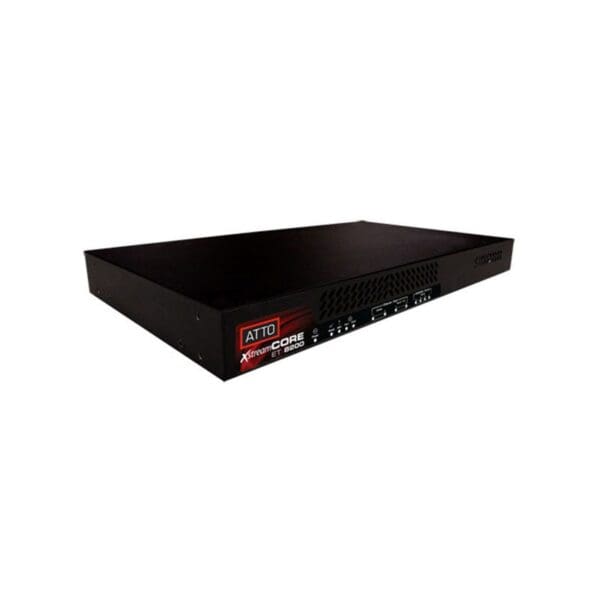

XCET-8200-TP2 Technical Specifications
ATTO XstreamCORE ET 8200 Storage Controller SAS 12Gb/s 40 Gigabit Ethernet
Brand : ATTO
Manufacturer Part Number : XCET-8200-TP2
Device Type
Storage controller – rack-mountable
Bus Type
40 Gigabit Ethernet
Interface
SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Tape drive
Channel Qty
4
Max Storage Devices Qty
240
Interface SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Tape drive
Channel Qty 4
Max Storage Devices Qty 240
Manufacturer Warranty
Service & Support Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Host Bus 40 Gigabit Ethernet
Expansion / Connectivity
Slots 2 x QSFP+
Interfaces 4 x SAS 12Gb/s – 4 x Mini SAS HD (SFF-8644)
Dimensions & Weight (Shipping)
Shipping Weight 12.9 lbs
Power
Type Power supply – hot-plug / redundant
Voltage Required AC 120/230 V (50/60 Hz)
