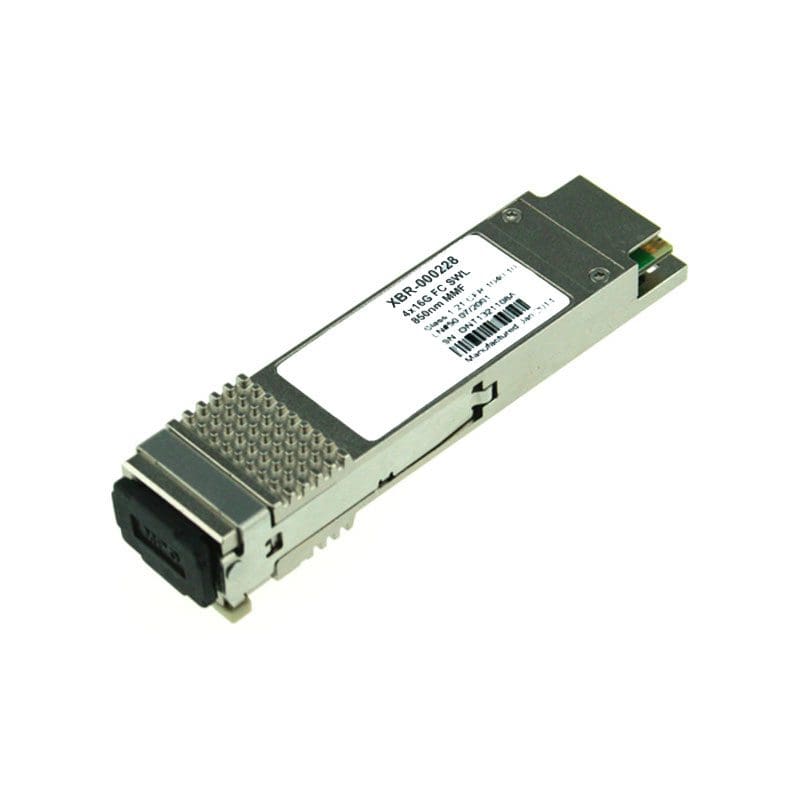

XBR-000228 Technical Specifications
Brocade 4x16G FC SWL QSFP – 50m, 57-0000090-01
Manufacturer: Brocade
Brocade Ordering Part Number: XBR-000228
Manufacturing Part Number: 57-0000090-01
Device Type: 4x16G FC QSFP+
Max Data Rate: 64Gbps
Wavelength: 850nm
Max Distance: 50m
DDMI: Yes
Operating Temperature Range: 0 to 70°C (32 to 158°F)
Form Factor: QSFP
Data Rate: 4×14.025 Gbps( 4Gb/s)
Wavelength: 850nm
Connector: MTP 1×12 ribbon cable connector
Cable Type: MMF
Reach Distance: 50 m
Digital Optical Monitoring (DOM): With
Applications: 4x16G FC
