XBR-000193 Technical Specifications

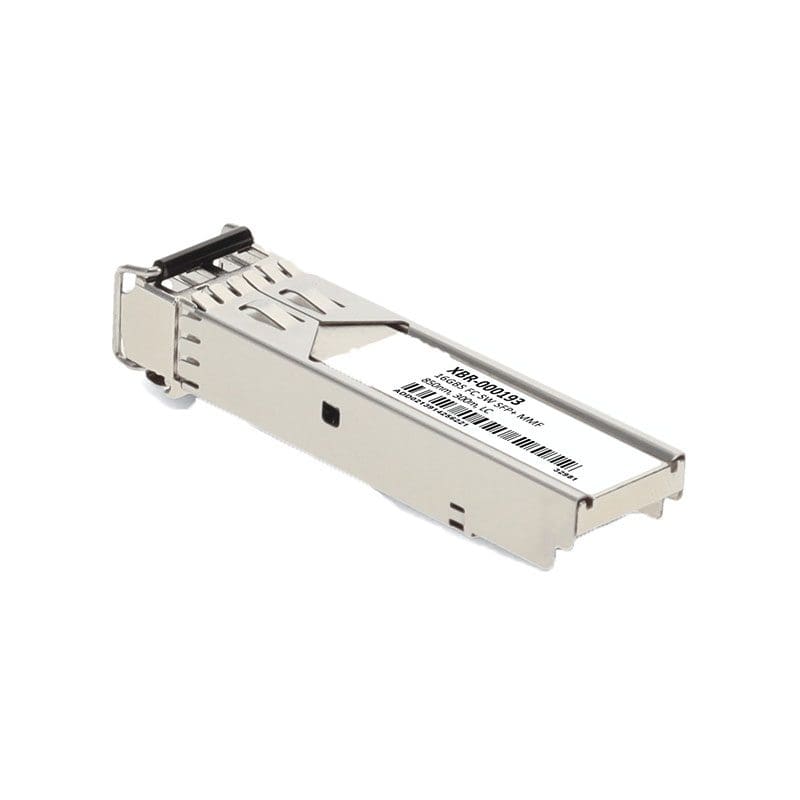

Brocade 16Gb Short Wavelength Optical Transceiver
Form Factor: SFP Plus
Data Rate: 14.025 Gbps (14Gb/s)
Wavelength: 850nm
Connector: LC Duplex
Cable Type: MMF
Reach Distance: 100m@OM3, 125m@OM4
Operating Temperature Range: 0°C to 70°C
Digital Optical Monitoring (DOM): With
Applications: 16G/8G/4G FC
