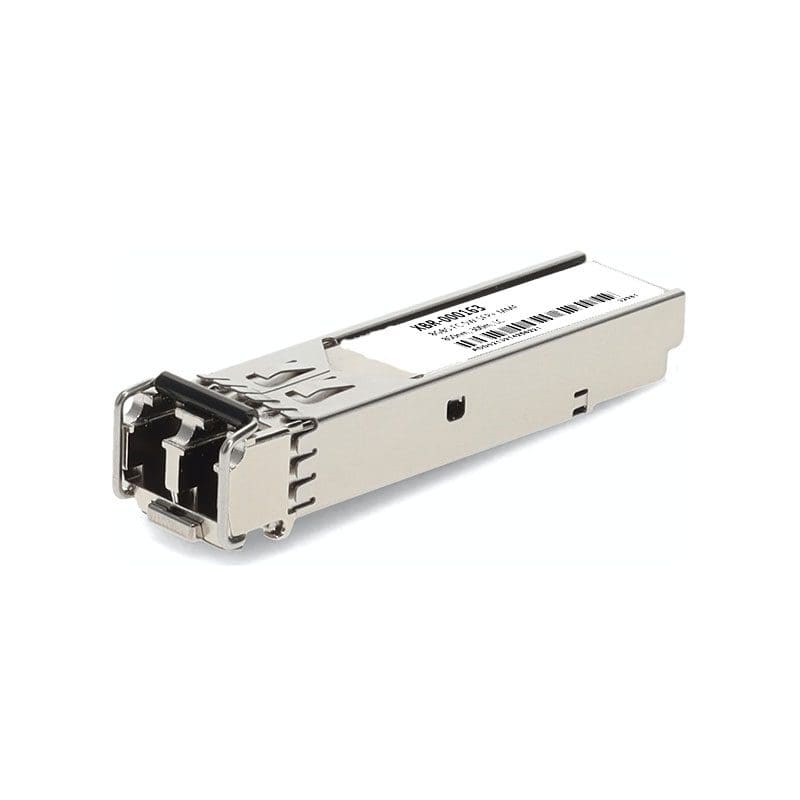

XBR-000163 Technical Specifications
Brocade 8Gb Short Wavelength Optical Transceiver
Form Factor: SFP Plus
Data Rate: 8.5/4.25/2.125 8Gbit/sec
Wavelength: 850nm
Connector: LC Duplex
Cable Type: MMF
Reach Distance: 21m@OM1, 50m@OM2, 150m@OM3
Operating Temperature Range: 0°C to 70°C
Digital Optical Monitoring (DOM): With
Applications: 8G/4G/2G FC
