WUS3BA196C7P3E3 Technical Specifications

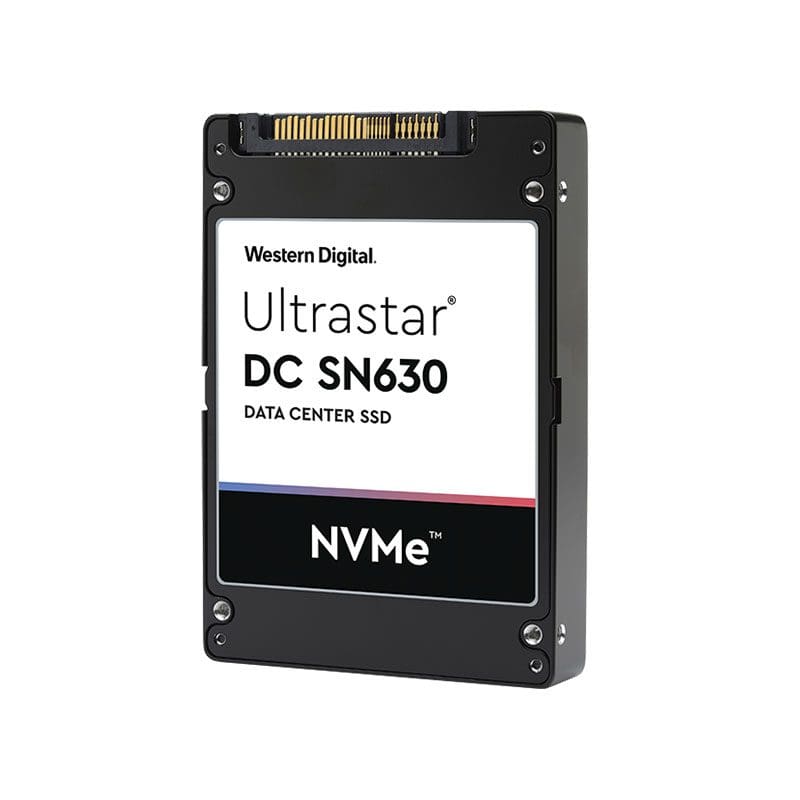

HGST Ultrastar DC SN630 960GB Pcie Gen 3.0 X4 U.2 2.5Inch Solid State Drive
GENERAL INFORMATION :
Brand : Hgst
Model : Wus3ba196c7p3e3
Product Line : Ultrastar Dc Sn630
Product Type : Solid State Drive (SSD)
Product Name : Ultrastar Dc Sn630 960gb Solid State Drive
KEY FEATURES :
Storage Capacity : 960 Gb
Interface : Pcie Gen 3.0 X4 (Compliant To Nvme™ 1.3)
Form Factor : U.2 2.5-Inch Drive
Mtbf : 2 Million Hours
PERFORMANCE :
Sequential Read (Max, 128k) : 2770 Mbps
Sequential Write (Max, 128k) : 970 Mbps
Random Read Iops (Max, 4k) : 277,220 Iops
Random Write Iops (Max, 4k) : 46,410 Iops
Random Mixed R70/W30 (Max, 4k) : 114,520 Iops
PHYSICAL :
Z-Height : 7.00 +0.2/-0.5 Mm
Width : 69.85 +/-0.25 Mm
Length : 100.45 Mm
Weight : 95 G
