WUS3BA138C7P3E3 Technical Specifications

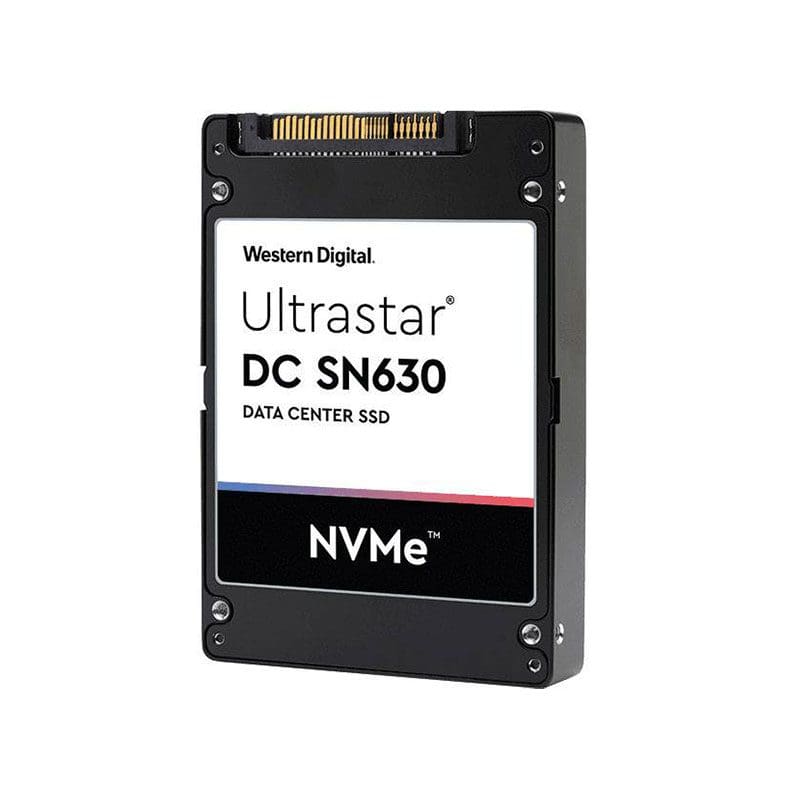

HGST Ultrastar DC SN630 3.84TB Pcie Gen 3.0 X4 U.2 2.5Inch Solid State Drive
GENERAL INFORMATION :
Brand : Hgst
Model : Wus3ba138c7p3e3
Product Line : Ultrastar Dc Sn630
Product Type : Solid State Drive (SSD)
Product Name : Ultrastar Dc Sn630 3.84tb Solid State Drive
KEY FEATURES :
Storage Capacity : 3.84 Tb
Interface : Pcie Gen 3.0 X4 (Compliant To Nvme™ 1.3)
Form Factor : U.2 2.5-Inch Drive
Mtbf : 2 Million Hours
PERFORMANCE :
Sequential Read (Max, 128k) : 2580 Mbps
Sequential Write (Max, 128k) : 1230 Mbps
Random Read Iops (Max, 4k) : 329020 Iops
Random Write Iops (Max, 4k) : 55820 Iops
Random Mixed R70/W30 (Max, 4k) : 165490 Iops
PHYSICAL :
Z-Height : 7.00 +0.2/-0.5 Mm
Width : 69.85 +/-0.25 Mm
Length : 100.45 Mm
Weight : 95 G
