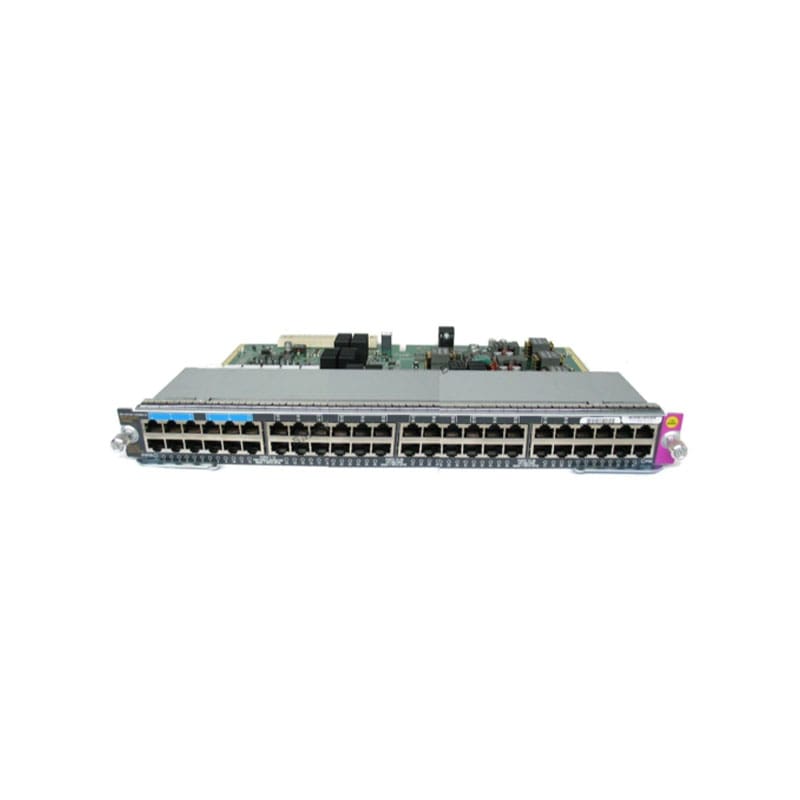

WS-X4748-12X48U+E Technical Specification
Cisco Catalyst 4500E Series Line Card switch 48 ports plug-in module
Brand: Cisco
Product Line: Cisco Catalyst
Model: 4500E Series Line Card
Manufacturer: Cisco Systems
Network & Communication
Form Factor (Hubs & Switches): Plug-in module
Ports: 48
Power Over Ethernet (PoE): UPOE
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Connectivity
Interface Provided: 12 x 10GBase-T RJ-45, 48 x 1000Base-T RJ-45 UPOE – 60 W
Port Quantity: 36
Port Type: 10/100/1000 (UPOE)
Technical Information
Max Operating Temperature: 40 degree Celsius
Max Storage Temperature: 75 degree Celsius
Min Operating Temperature: 0 degree Celsius
Min Storage Temperature: -40 degree Celsius
Product Information
Packaged Quantity: 1
Ports (2nd) Quantity: 12
Dimensions & Weight
Height: 3 centimetre
Width: 36.2 centimetre
Depth: 27.3 centimetre
Physical Characteristics
Color Category: Gray
