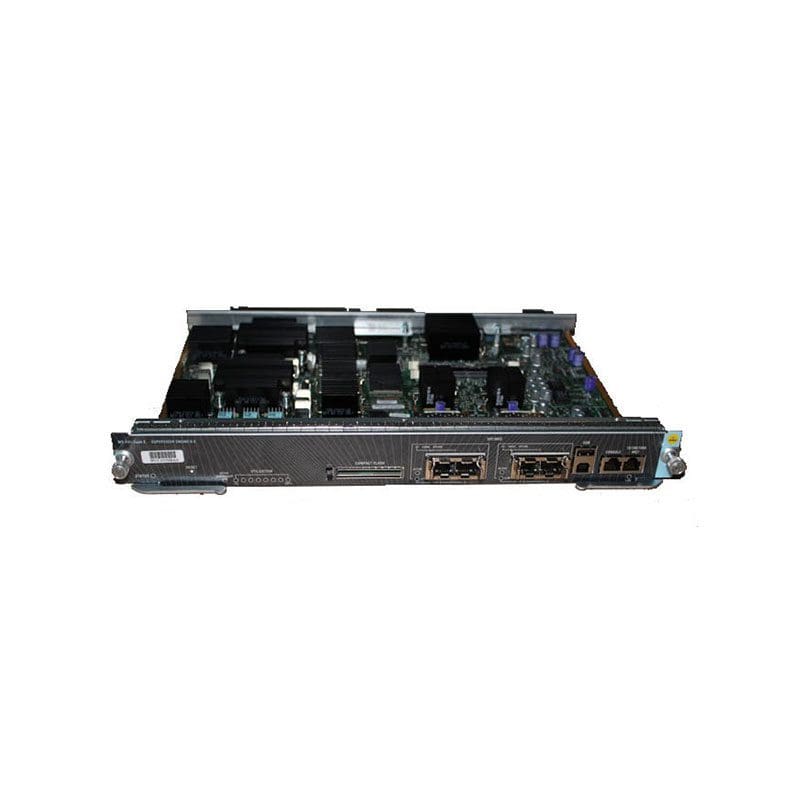

WS-X45-SUP6-E Technical Specifications
Cisco Catalyst 4500 E-Series Supervisor Engine
Feature and Description
WS-X45-SUP6-E
Centralized switching capacity
320 Gbps
Per-slot switching capacity
24 Gbps
Throughput
250 Mpps for IPv4
125 Mpps for IPv6
250 Mpps for L2 Bridging
IPv4 Routing entries
256,000
IPv6 Routing entries
128,000
Multicast routes
32,000
CPU
1.3 GHz
CPU queues
64
Synchronous Dynamic RAM (SDRAM)
512 MB upgradable to 1 GB
Nonvolatile RAM (NVRAM)
No through Boot flash (64 MB)
Security and QoS hardware entries
128,000
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries
12,000
MAC addresses
55,000
Active VLANs
4096
Spanning Tree Protocol instances
10,000
Switched virtual interfaces (SVIs)
4096
Switched Port Analyzer (SPAN)
Maximum of 8 sessions: ingress and or egress
