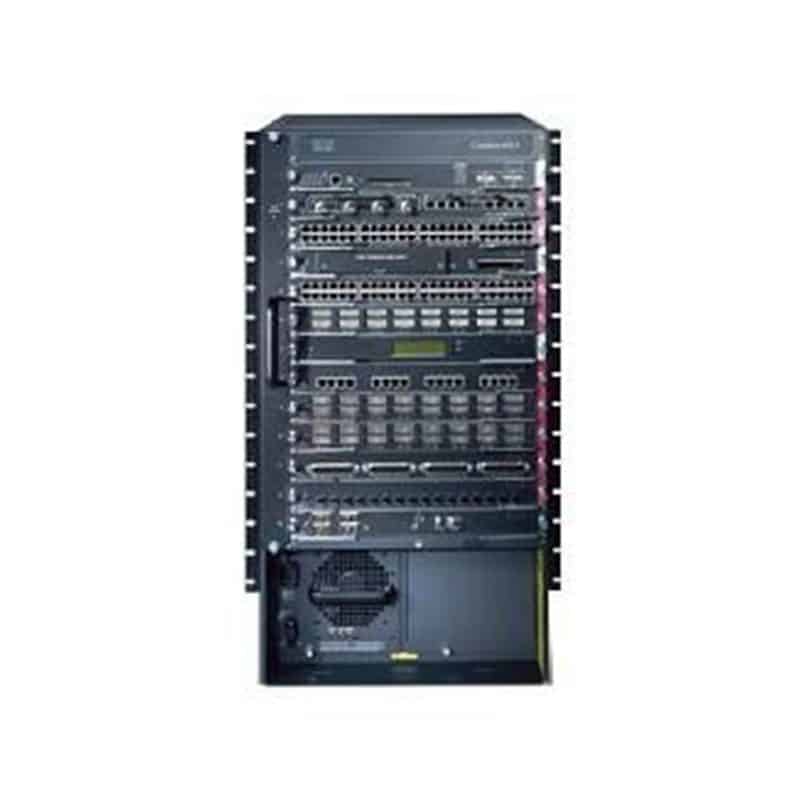

Refurbished WS-C6513-CSM Technical Specifications
Cisco 6500 Switch CSM, 6513, Sup720 Bundle
Manufacturer Cisco
Manufacturer Part # WS-C6513-CSM
Product Line Cisco Catalyst
Product Series C6500
Product Model C6513
Product Type Switch Bundle
Product Description Cisco Catalyst 6513 – switch – Managed – desktop – with Cisco Supervisor Engine 720, Cisco CSM
Device Type Switch – L4 – Managed – with Cisco Supervisor Engine 720, Cisco CSM
Enclosure Type Desktop 20U
Interfaces Gigabit Ethernet
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE
Remote Management Protocol SNMP
Features Layer 4 switching, Layer 3 switching, Layer 2 switching, NAT support, VPN support, PAT support, load balancing, VLAN support, traffic shaping, DoS attack prevention, IPv6 support
Compliant Standards IEEE 802.1x
Dimensions (WxDxH) 43.7 cm x 46 cm x 84.6 cm
General
Compliant Standards IEEE 802.1x
Device Type Switch – L4 – Managed – with Cisco Supervisor Engine 720, Cisco CSM
Enclosure Type Desktop – 20U
Encryption Algorithm DES, Triple DES, RSA, RC4, MD5, SHA-1
Features Layer 4 switching, Layer 3 switching, Layer 2 switching, NAT support, VPN support, PAT support, load balancing, VLAN support, traffic shaping, DoS attack prevention, IPv6 support
Interfaces Gigabit Ethernet
MAC Address Table Size 32K entries
Remote Management Protocol SNMP
Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE
Status Indicators Port status, power, link OK, system, active
Dimensions & Weight
Depth 46 cm
Height 84.6 cm
Width 43.7 cm
Environmental Parameters
Humidity Range Operating 10 – 90%
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Expansion / Connectivity
Expansion Slots 13 (total) / 11 (free) x Expansion Slot
Installed Modules Qty (Max) 2 (installed) / 13 (max)
Interfaces 1 x console – management ¦ 1 x 1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC)
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 60950, EN55024, CSA 22.2 No. 950, ACA TS001, AS/NZS 3260, FCC CFR47 Part 15, IEC 825-1, FCC CFR21 Part 1040
