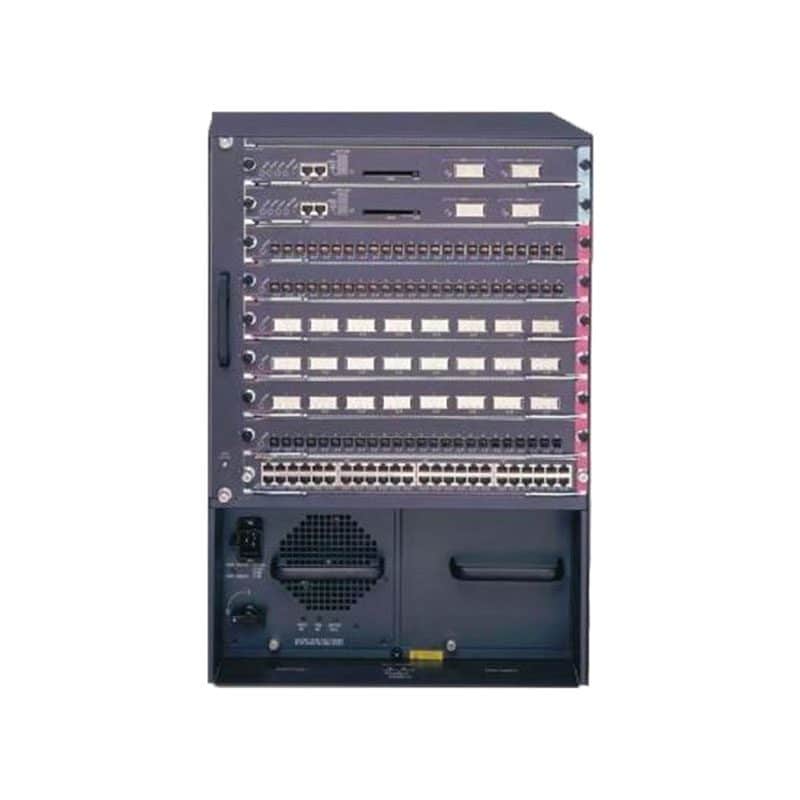

Refurbished WS-C6509E-CSMS-K9 Technical Specifications
Cisco 6500 Switch CSM-S, 6509, Sup720 Bundle
Manufacturer Cisco
Manufacturer Part # WS-C6509E-CSMS-K9
Product Line Cisco Catalyst
Product Series C6509E
Product Type Switch Bundle
Device Type Switch – L4 – Managed
Enclosure Type Desktop 15U
Interfaces Gigabit Ethernet
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE
Remote Management Protocol SNMP
Compliant Standards IEEE 802.1x
Dimensions (WxDxH) 44.5 cm x 46 cm x 62.2 cm
General
Device Type Switch – L4 – Managed
Enclosure Type Desktop – 15U
Interfaces Gigabit Ethernet
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE
Remote Management Protocol SNMP
Encryption Algorithm DES, Triple DES, RSA, RC4, MD5, SSL, SHA-1, SSL 3.0, SSL 2.0
Features Layer 4 switching, Layer 3 switching, Layer 2 switching, NAT support, VPN support, PAT support, load balancing, VLAN support, traffic shaping, DoS attack prevention, IPv6 support
Compliant Standards IEEE 802.1x
Expansion / Connectivity
Interfaces 1 x console – management
1 x 1000Base-T – RJ-45
2 x SFP (mini-GBIC)
Expansion Slots 9 (total) / 7 (free) x Expansion Slot
Installed Modules Qty (Max) 2 (installed) / 9 (max)
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 60950, EN55024, CSA 22.2 No. 950, ACA TS001, AS/NZS 3260, FCC CFR47 Part 15, IEC 825-1, FCC CFR21 Part 1040
Dimensions & Weight
Width 44.5 cm
Depth 46 cm
Height 62.2 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 – 90%
