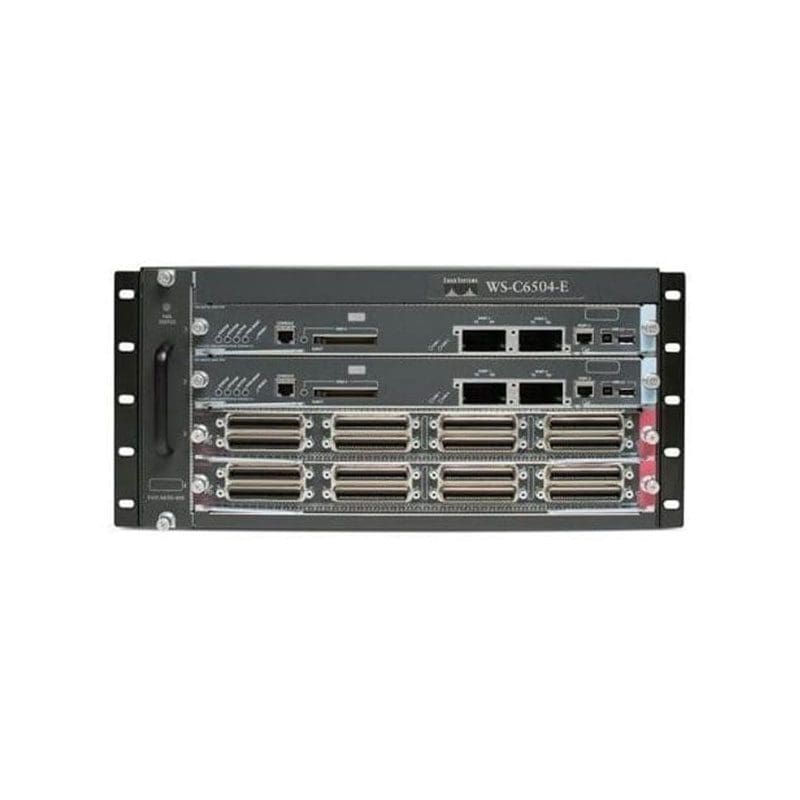

Refurbished WS-C6504-E-VPN+-K9 Technical Specifications
Cisco 6500 Switch Cisco Catalyst switch 6504E IPSec VPN SPA Security System
Manufacturer Cisco
Manufacturer Part # WS-C6504-E-VPN+-K9
Product Line Cisco Catalyst
Product Series C6504E
Product Description Cisco Catalyst 6504-E with Supervisor Engine 720-3B – switch – rack-mountable
Device Type Switch
Enclosure Type Rack-mountable 5U
Features Modular design, uplink, VPN support
Dimensions (WxDxH) 17.5 in x 21.7 in x 8.7 in
System Requirements Cisco IOS 12.2(18)SXE
General
Device Type Switch
Enclosure Type Rack-mountable – 5U
Features Modular design, uplink, VPN support
Status Indicators Port status, power, system
Expansion / Connectivity
Interfaces 1 x serial (RS-232) – RJ-45 – management
1 x 1000Base-T – RJ-45
2 x SFP (mini-GBIC)
Expansion Slots 4 expansion slot
2 (total) / 2 (free) x PC Card
Installed Modules Qty (Max) 4 (max)
Miscellaneous
MTBF 7 years
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 3260, AS/NZ 3548 Class A, EMC, FCC Part 15, CSA C22.2 No. 60950-00, ICES-003 Class A
System Requirements
OS Required Cisco IOS 12.2(18)SXE
Dimensions & Weight
Width 17.5 in
Depth 21.7 in
Height 8.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
