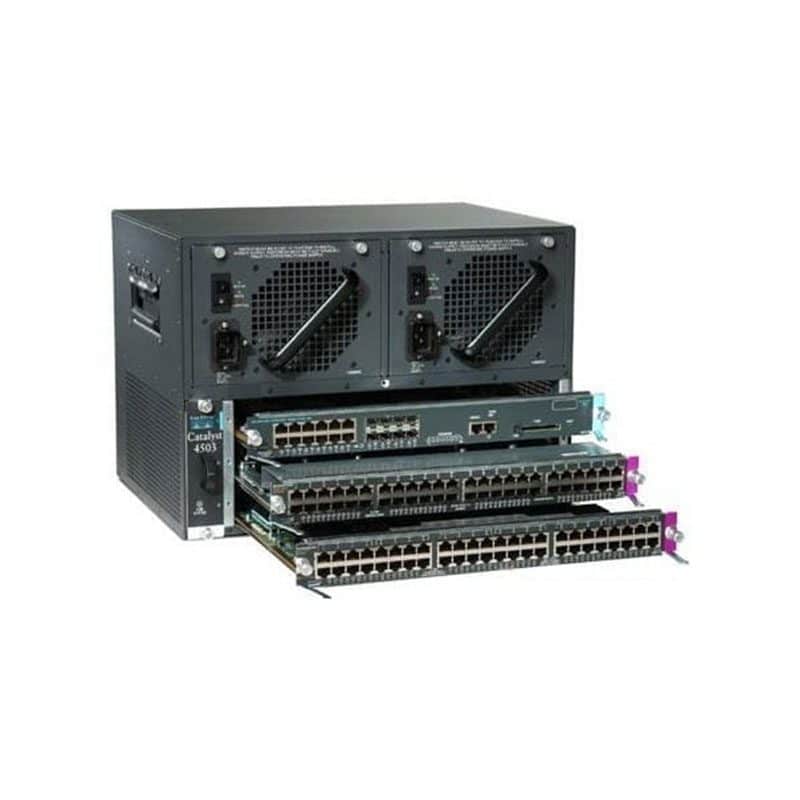

Refurbished WS-C4503 Technical Specifications
Cisco Catalyst 4500 Chassis (3-Slot),fan, no p/s.
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C4503
Brand Name Cisco
Product Line Cisco Catalyst
Product Series 4500
Product Model C4503
Product Name Catalyst 4503 Ethernet Switch
Product Type Ethernet Switch Chassis
I/O Expansions
Number of Total Expansion Slots 3
Expansion Slot Type Supervisor Engine
Management & Protocols
Manageable Yes
Management-
SNMP
MIB
Power Description
Power Source Power Supply
Redundant Power Supply Yes
Miscellaneous
Additional Information
Item Included:
Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)
-19-in. rack and cable guide hardware included
Supervisor engines supported:
Supervisor II
Supervisor III
Supervisor IV
Certifications & Standards
Safety:
UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260
EMC:
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, Safety and Environmental Standards:
GR-63-Core NEBS Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (Pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Telecom (E1):
CTR 12/13
CTR 4
ACA TS016
Telecom (T1):
FCC Part 68
Canada CS-03
JATE Green Book Ethernet:
IEEE 802.3, 10BASE-T
Fast Ethernet:
IEEE 802.3u, 100BASE-TX
IEEE 802.3, 100BASE-FX
Gigabit Ethernet:
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ab
1000BASE-X (GBIC)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
Virtual LAN (VLAN) trunking/tagging:
IEEE 802.1Q
Spanning-Tree Protocol:
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
Security:
IEEE 802.1x
System Requirements
Minimum software requirement:
Supervisor Engine II: Cisco CatOS Software Version 7.4(1) or higher
Supervisor Engine III: Cisco IOS Software Version 12.1(12c)EW or higher
Supervisor Engine IV: Cisco IOS Software Version 12.1(12c)EW or higher
