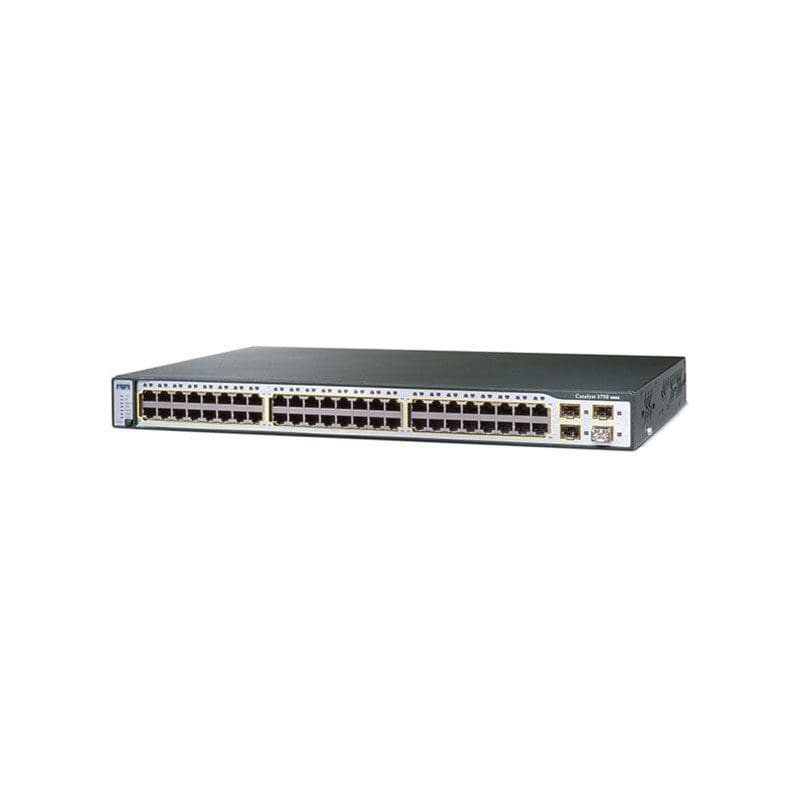

Refurbished WS-C3750-48TS-E Technical Specifications
Cisco Catalyst 3750 48 10/100 + 4 SFP Enhanced Multilayer Image
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3750-48TS-E
Brand Name Cisco
Product Line: Cisco Catalyst
Product Series C3750
Total Number of Network Ports 48
Number of Stack Ports 2
Stack Port Yes
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 48 x Fast Ethernet Network
Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Fast Ethernet
Network Technology 10Base-T
Network Technology 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots 4
Expansion Slot Type SFP
Number of SFP Slots 4
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management-
Command-line interface (CLI)
Cisco Cluster Management Suite (CMS) Software
CiscoWorks
IGMP snooping
Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
4000 VLAN IDs are supported
Cisco Group Management Protocol (CGMP)
RMON
Trivial File Transfer Protocol (TFTP)
Web browser setup utility allows one-click initialization for IP addresses and passwords
SNMP v1, v2c, and v3
Memory
Standard Memory 128 MB
Flash Memory 16 MB
Reliability
MTBF 217824 Hour
Power Description
Input Voltage 110 V AC
Input Voltage 220 V AC
Power Source Power Supply
Redundant Power
