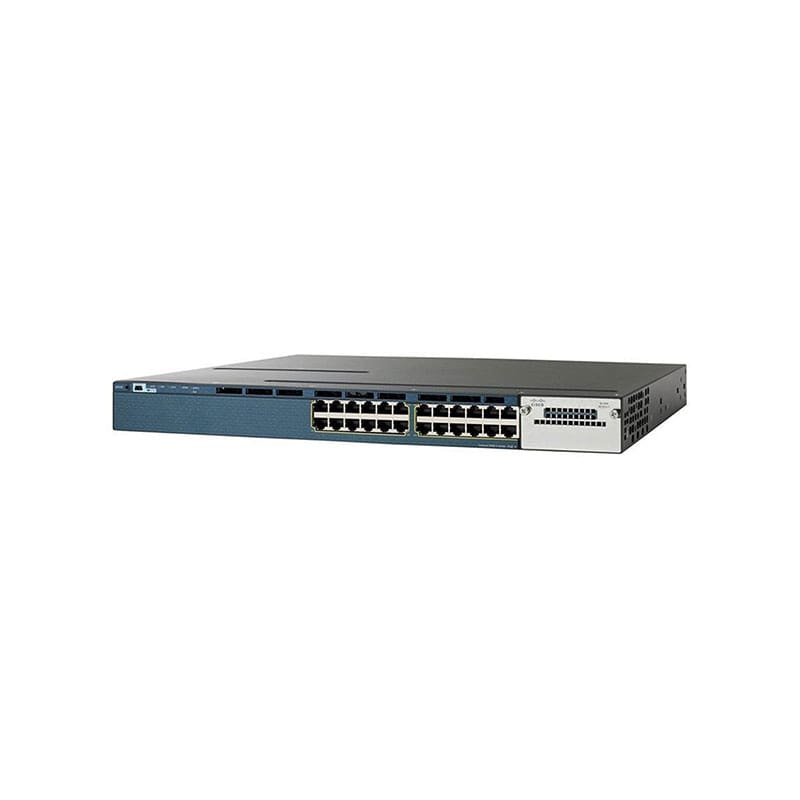

WS-C3560X-24U-E Technical Specifications
Cisco Systems Catalyst 3560X 24 Port Upoe IP Service
Product Type: Layer 3 Switch
Manageable: Yes
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Number of Total Expansion Slots: 4
Product Family: Catalyst 3560-X
Stack Port: Yes
Media Type Supported: Twisted Pair
Total Number of Network Ports: 24
PoE (RJ-45) Port: No
Redundant Power Supply Supported: Yes
Form Factor: Rack-mountable
Power Source: Power Supply
Layer Supported: 3
Environmentally Friendly: Yes
Compatible Rack Unit: 1U
Modular: No
Height: 1.8″
Width: 17.5″
Depth: 19.5″
Product Series: 3560-X
Product Model: WS-C3560X-24U-E
Network Technology: 10/100/1000Base-T
Product Line: Catalyst
Limited Warranty: Lifetime
Twisted Pair Cable Standard; Category 5e
Token Ring Port: No
LRE Port: No
USB: Yes
Management Port: Yes
Bypass: No
Number of UPOE (RJ-45) Ports: 24
Memory Technology: DRAM
