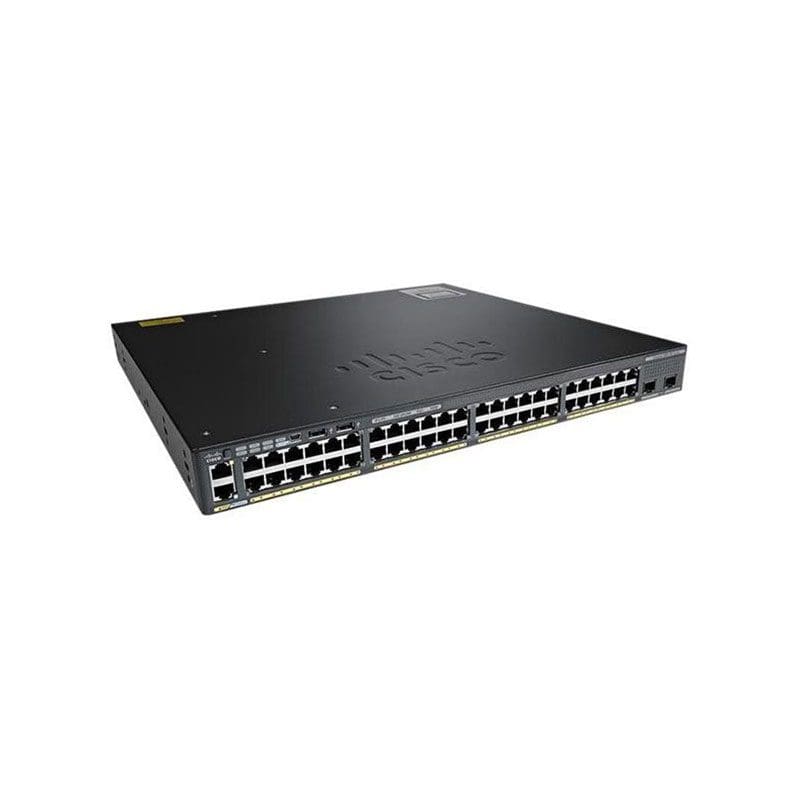

Refurbished WS-C2960XR-48FPD-I Technical Specifications
Cisco Catalyst 2960-XR 48 GigE PoE 740W, 2 x 10G SFP+, IP Lite
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C2960XR-48FPD-I
Brand Name Cisco
Product Line Cisco Catalyst
Product Series C2960XR
Product Model 2960XR-48FPD-I
Product Name Catalyst 2960XR-48FPD-I Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Number of PoE (RJ-45) Ports 24
Number of PoE+ (RJ-45) Ports 24
Port/Expansion Slot Details 48 x Gigabit Ethernet Network
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 3
Memory
Standard Memory 512 MB
Memory Technology DRAM
Flash Memory 128 MB
Reliability
MTBF 231590 Hour
Power Description
PoE (RJ-45) Port Yes
Input Voltage 110 V AC
Input Voltage 220 V AC
Power Source Power Supply
Redundant Power Supply Yes
