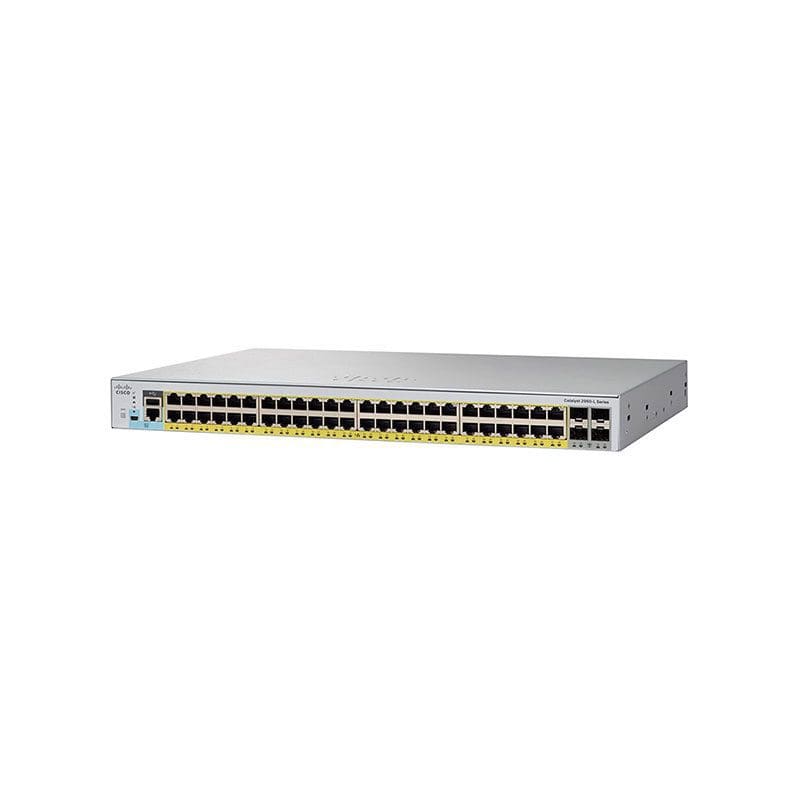

WS-C2960L-SM-48PQ Technical Specifications
Cisco 2960L 48 Port
Hardware
Product Line: Cisco Catalyst
Product Series: 2960L
Ports
48 Port Network Switch
(48) GbE PoE RJ45
Number of Total Expansion Slots 4
Expansion Slot Type SFP+
Number of Slots: 4 SFP+
Memory and Processor
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Dimensions
Dimensions (H x D x W)
1.73 x 11.5 x 17.5 in (4.4 x 29.2 x 44.5 cm)
Weight 9.81 lb (4.54kg)
Performance
Forwarding bandwidth 88Gpbs
Switching bandwidth 176 Gbps
Forwarding rate (64-byte L3 packets) 77.38 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 512
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
