WS-C2960L-SM-24TQ Technical Specifications

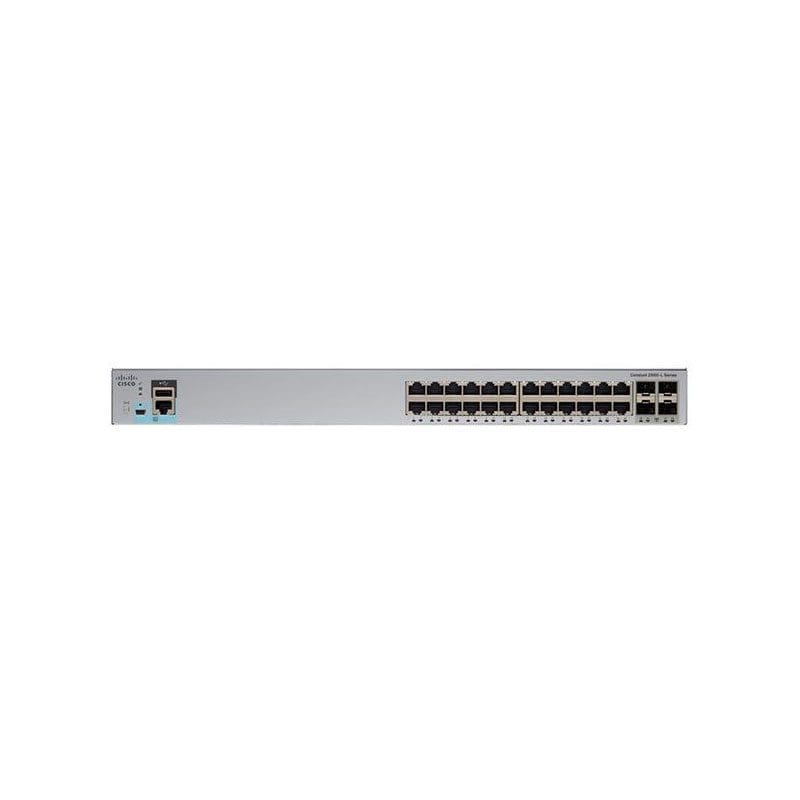

Cisco Catalyst 2960L 24 Port
Hardware
Product Line: Cisco Catalyst
Product Series: 2960L
Ports
24 Port Network Switch
24 x 10/100/1000BASE-T
Other ports 4 SFP+
Ethernet Technology: Gigabit Ethernet
Memory and Processor
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Dimensions
Dimensions (H x D x W)
1.73 x 9.45 x 17.5 in (4.4 x 24 x 44.5 cm)
Weight 6.06 lb (2.75kg)
Performance
Forwarding bandwidth 64 Gbps
Switching bandwidth 128 Gbps
Forwarding rate (64-byte L3 packets) 41.67 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 512
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
IPv6 static routes 16
