WS-C2960L-SM-16PS Technical Specifications

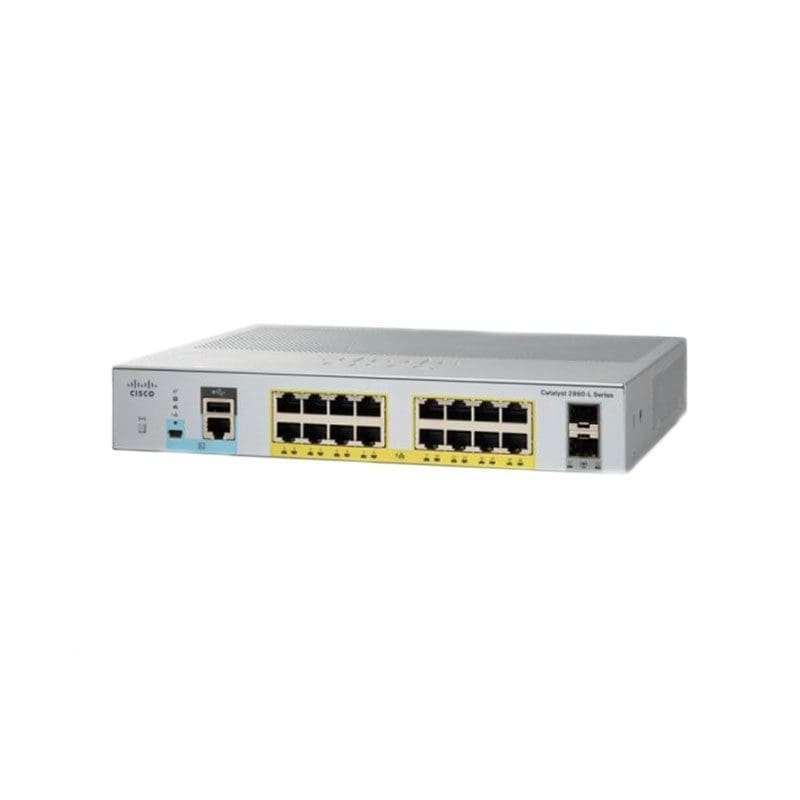

Cisco Catalyst 2960L-SM-16PS Switch 16 Port
Capacity
Type :Active VLANs
Value :64
Type :STP instances
Type :VLANs supported
Value :4094
Dimensions & Weight
Depth :9.4 in
Height :1.7 in
Weight :4.65 lbs
Width :10.6 in
Environmental Parameters
Humidity Range Operating :5 – 90%
Humidity Range Storage :5 – 95%
Max Operating Temperature :113 °F
Max Storage Temperature :158 °F
Min Operating Temperature :23 °F
Min Storage Temperature :-13 °F
Flash Memory
Installed Size :256 MB
Header
Brand :Cisco
Manufacturer :Cisco Systems
Model :2960L-SM-16PS
Packaged Quantity :1
Product Series: 2960L
Product Line :Cisco Catalyst
Interface Provided
Comments :PoE+
Connector Type :RJ-45
Qty :16
Type :1000Base-T
Comments :Uplink
Connector Type :SFP
Qty :2
Type :1000Base-X
Connector Type :Type A
