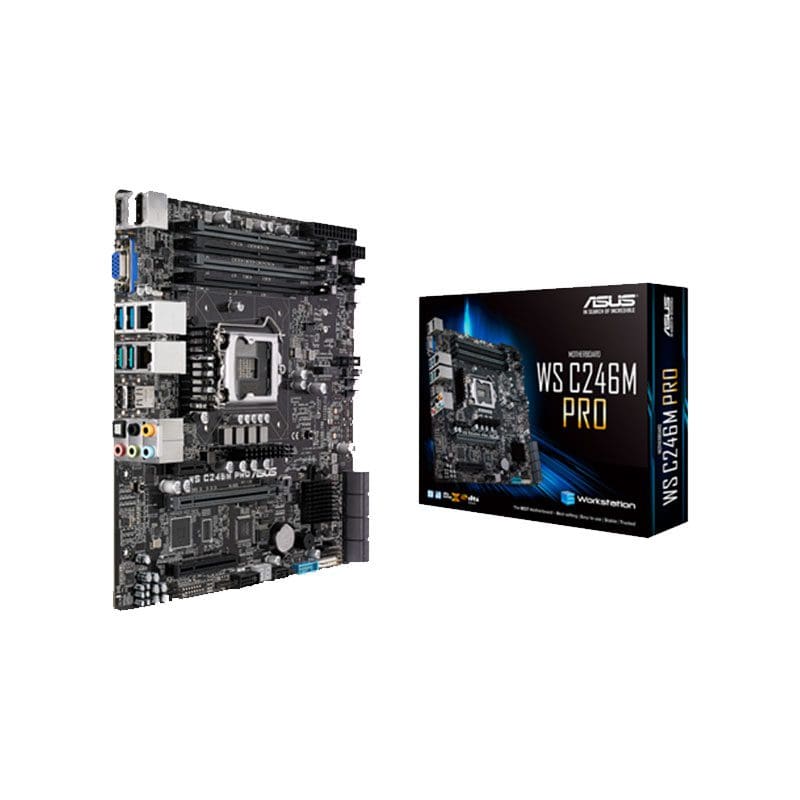

WS C246M PRO Technical Specifications
ASUS uATX Server Motherboard LGA 1151 Intel C246 Chipset
Model
Brand
ASUS
Model
WS C246M PRO
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Intel Xeon processor E-2100 family; E-2100/E-2200
The 8th/9th generation Core i9/i7/i5/i3/Pentium/Celeron Processor processors
*Refer to support page for more information
Chipsets
North Bridge
Intel C246
Memory
Number of DDR4 Slots
4 x 288-pin
DDR4 Standard
Dual Channel DDR4 2666 / 2400 / 2133
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
ECC Supported
Yes
Expansion Slots
PCI Express 3.0 x16
1
PCI Express x8
Slot Location 3: PCI-E x8 (Gen3 X4 Link)
PCI Express x1
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Storage Devices
SATA
8 x SATA 6.0Gb/s
SATA RAID
Intel Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
M.2
1 x M.2 Connector , NGFF Type : 2280/2260/2242
SAS
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Onboard LAN
Number of LAN
2
LAN Chipset
1 x Intel I210AT
Second LAN Chipset
1 x i219-LM
Rear Panel Ports
Video Ports
1 x HDMI
1 x DisplayPort
1 x VGA
RJ45
2 x RJ-45 ports
USB 1.1/2.0
2 x USB 2.0
USB 3.0
2 x USB 3.0
USB 3.1
2 x USB 3.1 ports (Type A)
Audio Ports
8-channel Audio I/O ports (5+1 Audio jacks)
