WDS250G3B0C Technical Specifications

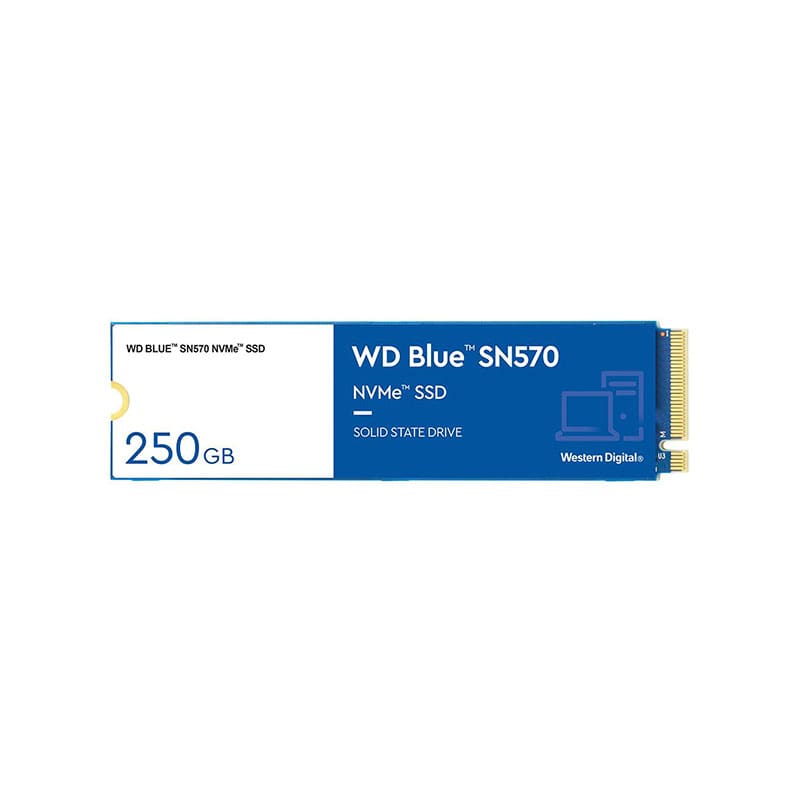

Western Digital Blue SN570 Series 250GB TLC PCI Express SSD
Brand WD
Product Line WD Blue SN570 NVMe SSD
Model WDS250G3B0C
Manufacturer Western Digital
Storage
Endurance Type 150 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 250 GB
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max 4KB Random Read
190000 IOPS
Max Internal Data Transfer Rate
3300 MBps
Max Write Transfer Rate
1200 MBps
Maximum 4KB Random Write
210000 IOPS
NAND Flash Memory Type
Triple-level cell (TLC)
Storage Interface
PCI Express 3.0 x4 (NVMe)
Connectivity
Interface Provided
1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Power
Power Consumption
3.5 Watt (maximum), 30 mW (low power active), 5 mW (sleep), 90 mW (active)
Software
Software Type
Acronis True Image, Adobe Creative Cloud (1 month membership, limitations apply)
Technical Information
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
1,500,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Vibration Acceleration (Non-operating)
4.9 gram
Vibration Acceleration (Operating)
5 gram
Vibration Frequency Range (Non-operating)
7-800 Hz
Vibration Frequency Range (Operating)
10-2000 Hz
Product Information
Packaged Quantity 1
Product Type
Solid state drive
Dimensions & Weight
Height 0.1 inch
Weight 0.23 ounce
Width 0.9 inch
Depth 3.1 inch
